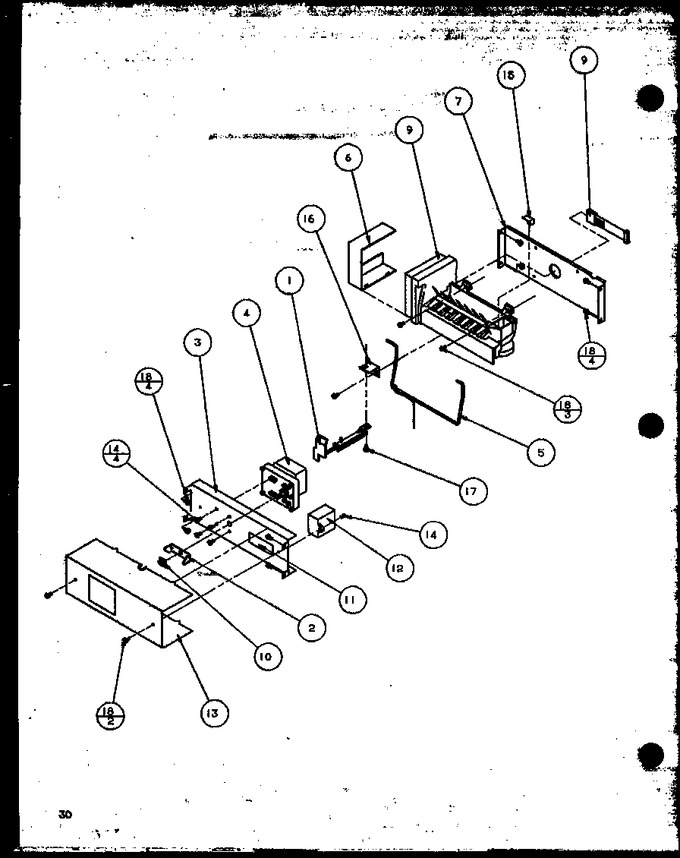

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8980404		Im Shut Off Assy		Appelez-nous	-
2	10114901		Driver (ice Maker)				$ 1.61
3	D7749205		Support,auger Motor		Appelez-nous	-
4	10114801		Kit, Auger Motor		Appelez-nous	-
5	D7877001		Arm,ice Maker Shut Off		Appelez-nous	-
6	D7820401		Cover Im		Appelez-nous	-
7	D7821003		Support-im		Appelez-nous	-
8	D7824601		Harness				$ 57.59
9	D7824706Q		Ice Maker   (Replaces: D7824701)			Immediately	$ 150.62
10	WPM0223101		Nut, Locking   (Replaces: M0223101)				$ 6.91
11	A3030305		Gasket-per Ft		Appelez-nous	-
12	W10613606		Capacitor   (Replaces: C8931605)			Immediately	$ 77.93
13	D7788815		Cover, Auger Motor		Appelez-nous	-
14	WP489128		Screw   (Replaces: M0253516)				$ 9.79
15	B5720301		Clip		Appelez-nous	-
16	B8391801		Bracket, I/m		Appelez-nous	-
17	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.20
18	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 6.26
