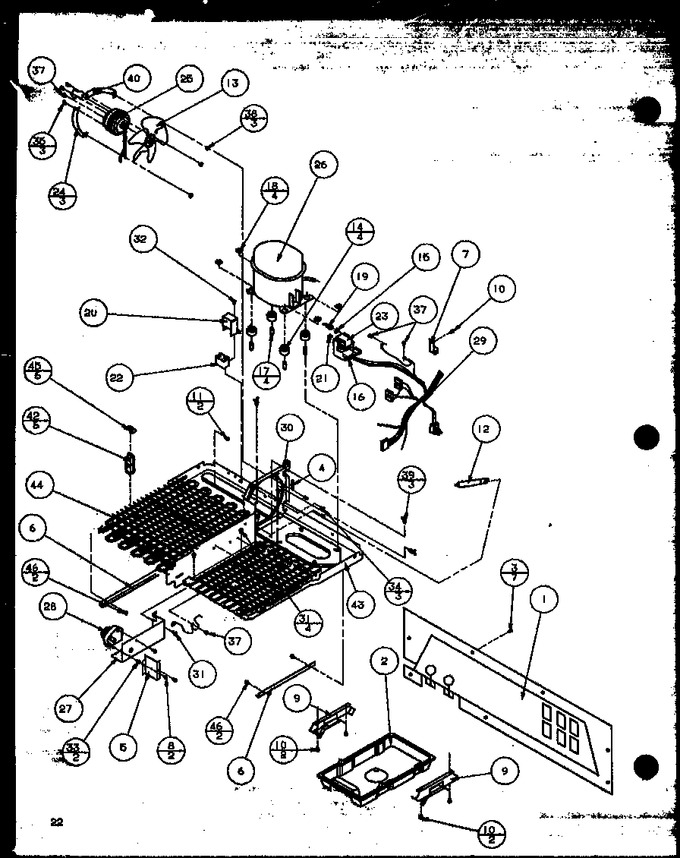

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7788901		Mach Back Assy A		Appelez-nous	-
2	D7790601		Drain Pan		Appelez-nous	-
3	M0219704		Screw		Appelez-nous	-
4	B5759604		Gasket		Appelez-nous	-
5	C8973502		Bracket, Timer		Appelez-nous	-
6	D7835501		Support M.c.		Appelez-nous	-
7	M0102325		Clamp		Appelez-nous	-
8	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
9	D7790501		Support Drain Pan		Appelez-nous	-
10	WP489069		Screw-sd   (Replaces: M0233704)			Immediately	$ 7.07
11	M0233844		Screw, T F		Appelez-nous	-
12	4007A		Drier   (Replaces: B2150502)			Immediately	$ 13.55
13	B5742601		Blade, Fan		Appelez-nous	-
14	WPW10169124		Grommet   (Replaces: B8333401)			Immediately	$ 6.47
15	B8358301		Spring, Overload		Appelez-nous	-
16	YB8358601		Bale Strap		Appelez-nous	-
17	B8384901		Pin, Comp. Mtg.		Appelez-nous	-
18	B8385001		Clip, Comp. Mtg		Appelez-nous	-
19	C8906203		Overload		Appelez-nous	-
20	10266401		Shield-capacitor		Appelez-nous	-
21	2154436		Relay-ptc   (Replaces: C8931502)				$ 121.45
22	WPW10662129		Capacitor   (Replaces: C8931602)			Immediately	$ 52.97
23	C8960801		Term Cover		Appelez-nous	-
24	C8982101		Bracket, Cond Motor		Appelez-nous	-
25	833697		Motor, Fan   (Replaces: D7584002)			Immediately	$ 79.34
26	D7736203		Compressor Aea1410axa		Appelez-nous	-
27	D7844201		Bracket, Timer		Appelez-nous	-
28	R0131577		Timer, Defrost (8 Hr)   (Replaces: 10129304)			Immediately	$ 46.12
29	10356801		Harness M.c.		Appelez-nous	-
30	D7844102		Cond. Fan Shroud		Appelez-nous	-
31	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 7.15
32	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
33	M0218118		Screw		Appelez-nous	-
34	M0221332		Screw, Shoulder		Appelez-nous	-
35	M0223803		Screw		Appelez-nous	-
37	M0253916		Screw		Appelez-nous	-
38	M0500107		Grommet K		Appelez-nous	-
39	DC61-40081A		Tie, Wire   (Replaces: M0585401)				$ 0.85
40	WPW10339879		Tie   (Replaces: M0321202)				$ 7.11
42	B8346301		Spacer Cond.		Appelez-nous	-
43	D7748604		Pan, Base		Appelez-nous	-
44	D7824503		Condenser Pntd		Appelez-nous	-
45	M0293703		Speednut		Appelez-nous	-
46	M0211530		Screw		Appelez-nous	-
