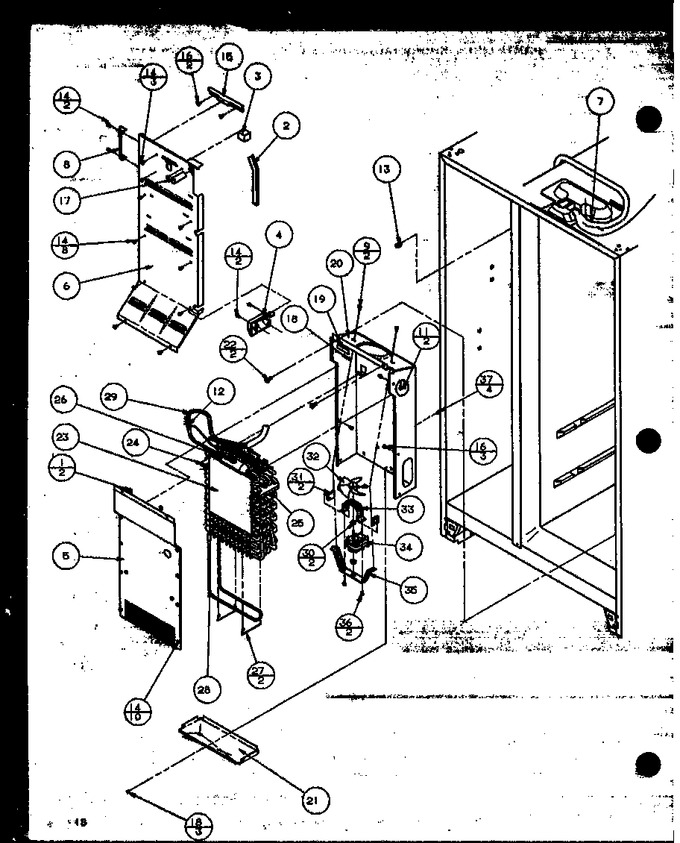

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B8324801 | Clip Ground |
|
- | |||||
| 2 | B8386602 | Gasket |
|
- | |||||
| 3 | C8976102 | Gasket, Air Block |
|
- | |||||
| 4 | D7786901 | Cover, M.k Air |
|
- | |||||
| 5 | D7865907 | Cover, Evaporator |
|
- | |||||
| 6 | D7821124 | Inner Fz Bach Pnt |
|
- | |||||
| 7 | 10281401 | Harness, Ref Liner |
|
- | |||||
| 8 | D7838302 | Cover, Supply Air |
|
- | |||||
| 9 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 11 | WP489399 | Screw (Replaces: M0232903) |
|
$ 6.26 | |||||
| 13 | M0322202 | Tie Wire |
|
- | |||||
| 14 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 6.26 | ||||
| 15 | C8976201 | Clamp |
|
- | |||||
| 16 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 7.20 | |||||
| 17 | A3127413 | Ext Fill Tube |
|
- | |||||
| 18 | 10098801 | Rivet |
|
- | |||||
| 19 | B5757707 | Gasket, Foam |
|
- | |||||
| 20 | D7865804 | Evaporator Shield |
|
- | |||||
| 21 | D7850202 | Drip Tray Pnt. |
|
- | |||||
| 22 | M0580003 | Grommet |
|
- | |||||
| 23 | B8327901 | Gasket, Evap. |
|
- | |||||
| 24 | B8385502 | Block-lh Air Coil |
|
- | |||||
| 25 | B8385601 | Block P M Air Coil |
|
- | |||||
| 26 | WPC8972006 | Thermostat Tri 111 (Replaces: C8972006) |
|
$ 96.41 | |||||
| 27 | C8983101 | Clip, Evap. Heater |
|
- | |||||
| 28 | D7872801 | Heater, Defrost |
|
$ 67.23 | |||||
| 29 | R0170041 | Assy,low Side-thin Wall Evap |
|
- | |||||
| 30 | WP2264462 | Grommet (Replaces: A1017202) |
|
Immediately | $ 39.57 | ||||
| 31 | A1047901 | Shim |
|
- | |||||
| 32 | C8795501 | Fan-evap |
|
- | |||||
| 33 | C8881301 | Brkt Evap Fan |
|
- | |||||
| 34 | WPC8891605 | Motor, Evap Fan (Replaces: C8891601) |
|
$ 295.56 | |||||
| 35 | D7767701 | Bracket, Motor Shroud |
|
- | |||||
| 36 | WP12990527 | Screw (Replaces: M0219916) |
|
Immediately | $ 7.15 | ||||
| 37 | M0580002 | Grommet A |
|
- |
