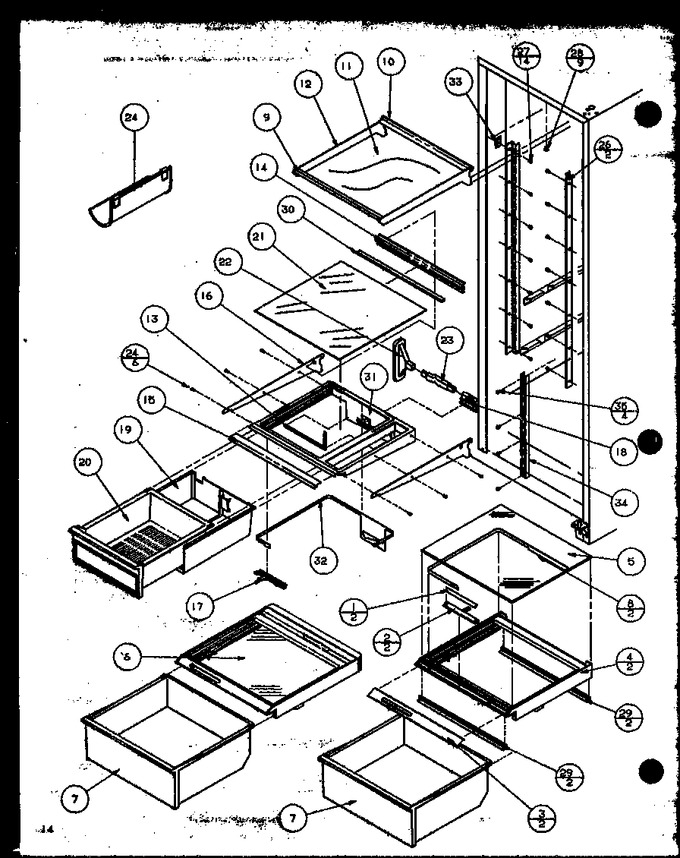

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10038401		Knob, Crisper Control		Appelez-nous	-
2	YD7860605		Slide, Crisper		Appelez-nous	-
3	D7616654		Trim, Crisper Front		Appelez-nous	-
4	D7853202		Frame Crisper		Appelez-nous	-
4	D7853205		Frame Crisper		Appelez-nous	-
5	D7421274		Glass Crisper Top		Appelez-nous	-
6	10036030		Glass Top Crisper		Appelez-nous	-
7	D7782119		Pan Crisper		Appelez-nous	-
7	D7782019		Crisper Pan, Lower		Appelez-nous	-
8	D7859603		Band Crisper Control		Appelez-nous	-
9	10049915		Trim		Appelez-nous	-
9	10049916		Trim		Appelez-nous	-
10	C8913606		Trim, Glass Shelf Rear		Appelez-nous	-
10	C8913614		Trim, Glass Shelf		Appelez-nous	-
11	10036025		Glass Shelf		Appelez-nous	-
11	10036074		Glass Shelf Half		Appelez-nous	-
11	10036024		Glass Shelf		Appelez-nous	-
12	D7871021		Frame Cant Shelf		Appelez-nous	-
12	D7871008		Frame Cont. Shelf		Appelez-nous	-
13	A3263905		Gasket-per Ft		Appelez-nous	-
14	C8990404		Trim-m.k., Top, Rear		Appelez-nous	-
15	10049914		Trim		Appelez-nous	-
16	D7862919		Side Rail		Appelez-nous	-
16	D7862918		Side Rail		Appelez-nous	-
17	D7859401		Slide-mk Control		Appelez-nous	-
18	D7869102		Ext. Air Duct		Appelez-nous	-
19	D7698113		Sleeve M.k.		Appelez-nous	-
20	D7698329		Pan-meat		Appelez-nous	-
21	10036027		Glass Top, Meatkeeper Shelf		Appelez-nous	-
22	D7873601		Grommet, Mk		Appelez-nous	-
23	D7869001		Xduct M.k. Air		Appelez-nous	-
24	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
25	D7547614		Rack, Bottle		Appelez-nous	-
26	D7789807		Ladder Cantilever		Appelez-nous	-
27	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 6.26
28	M0580007		Grommet, Screw		Appelez-nous	-
29	D7718404		Seal, Crisper Rear		Appelez-nous	-
29	D7718403		Seal, Crisper Front		Appelez-nous	-
30	10043102		Ext. Rear Glass		Appelez-nous	-
31	D7857002		Frame, M.k.		Appelez-nous	-
32	D7859503		Band M.k. Control		Appelez-nous	-
33	C8992301		Bracket		Appelez-nous	-
34	D7599003		Ladder, Center		Appelez-nous	-
35	M0230923		Screw		Appelez-nous	-
NI	R0179160		Crisper Frame Assy-glass		Appelez-nous	-
NI	R0179159		Crisper Frame Assy-glass		Appelez-nous	-
NI	10279111		Glass, Half Shelf Assembly		Appelez-nous	-
