Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10263802 Bushing, Door (wht) Appelez-nous -
2 C8972402 Stop, Door Appelez-nous -
3 R0181181 Kit,dr Closure   (Replaces: D7751402) In-Stock Immediately $ 6.47

4 10252902 Filter Bushing Appelez-nous -
5 D7852008 Trim Appelez-nous -
6 D7853803 Trim Center Ref Appelez-nous -
7 D7792803 Trim Lwr Ref Door Appelez-nous -
8 D7793202 Ref. Trim, Retainer Appelez-nous -
9 C8974102 Trim, Door Appelez-nous -
10 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 7.20

11 M0213815 Screw Appelez-nous -
12 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

13 WP3400094 Screw   (Replaces: M0253942) Special Order $ 7.14

14 D7863002 Pad, Handle Inner (wht) Appelez-nous -
15 D7863102 Pad, Handle Outer (wht) Appelez-nous -
16 M0215116 Screw Appelez-nous -
17 D7826603 Handle Appelez-nous -
18 WP8281196 Screw, Mach   (Replaces: M0202336) In-Stock Immediately $ 6.47

19 10126401 Hinge Cover - Chrome Appelez-nous -
20 10185101 Top Hinge-e Ct Appelez-nous -
21 R9800670 Kit, Screw   (Replaces: M0257244) Special Order $ 8.44

22 B8389001 Shim, Top Hinge Appelez-nous -
23 B8387701 Shim, Door Closure Appelez-nous -
24 B8387702 Shim, Door Closure Appelez-nous -
25 WP489128 Screw   (Replaces: M0220417) Special Order $ 9.79

26 R0181181 Kit,dr Closure   (Replaces: D7748301) In-Stock Immediately $ 6.47

27 10163602 Rh Bot Hinge-bk E Ct Appelez-nous -
28 B8386701 Kit,btm Hinge Shim Appelez-nous -
28 B8386703 Kit,btm Hinge Shim Appelez-nous -
28 B8386702 Kit,btm Hinge Shim Appelez-nous -
29 M0246258 Screw Appelez-nous -
31 C8984306 Thinplate K Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

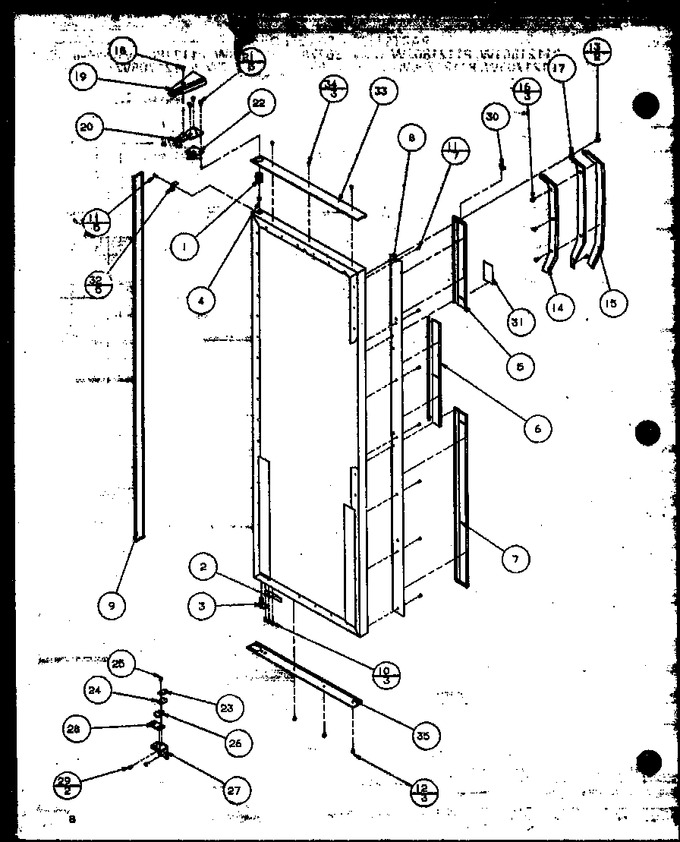

Diagram for 36271W (BOM: P1121801W W)
