Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7616620 Trim, Frz Shelf Appelez-nous -
2 D7781412 Basket Freezer Clear Appelez-nous -
3 D7781502 Freezer Shelf Appelez-nous -
4 D7788309 Shelf, Frz Appelez-nous -
5 D7788312 Shelf, Fz Wire Appelez-nous -
6 10049917 Trim Appelez-nous -
7 C8913607 Trim, Rear Frz Shelf Appelez-nous -
8 C8973801 Support, Frz Shelf Special Order $ 8.35

9 D7714404 Socket-light Appelez-nous -
10 D7753503 Plate-light Socket Appelez-nous -
11 D7786602 Shield, Light Appelez-nous -
12 W11384469 Switch   (Replaces: C3680304) In-Stock Immediately $ 33.51

13 18805 Switch   (Replaces: C3680306) Special Order $ 19.43

14 D7749002 Cover Light Appelez-nous -
15 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

16 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 6.26

17 C8976401 Barrier Frz. Appelez-nous -
18 C8974501 Barrier, Frz Side Appelez-nous -
19 67005375 Glide-l Fz   (Replaces: D7849903) Special Order $ 268.13

20 D7849904 Glide, Freezer Rh Appelez-nous -
21 M0213529 Screw Appelez-nous -
22 C8973701 Plug, Frz Shelf Support Appelez-nous -
23 M0580007 Grommet, Screw Appelez-nous -
24 10268001 Harness Fz Liner Appelez-nous -
25 D7808602 Socket, Dual Lamp Appelez-nous -
26 C8778301 Insulation Appelez-nous -
27 10014705 Light Shield Appelez-nous -
28 D7297603 Cover, Light Sw Appelez-nous -
29 D7716404 Housing-ref Light Appelez-nous -
30 B5733302 Clip, Ground Appelez-nous -
31 D7839701 Rack, Juice V Appelez-nous -
32 C8986111 Insert Juice Rack Appelez-nous -
35 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 6.26

36 10250001 Cover Wiring Appelez-nous -
37 10278001 Insulation Appelez-nous -
38 A3189337 Gasket Appelez-nous -
39 10270201 Housing, Light Appelez-nous -
40 10281601 Socket-light Appelez-nous -
41 WPA3073101 Bulb 120v. 40w.   (Replaces: A3079001) In-Stock Immediately $ 10.90

42 Y10270101 Cover-light Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

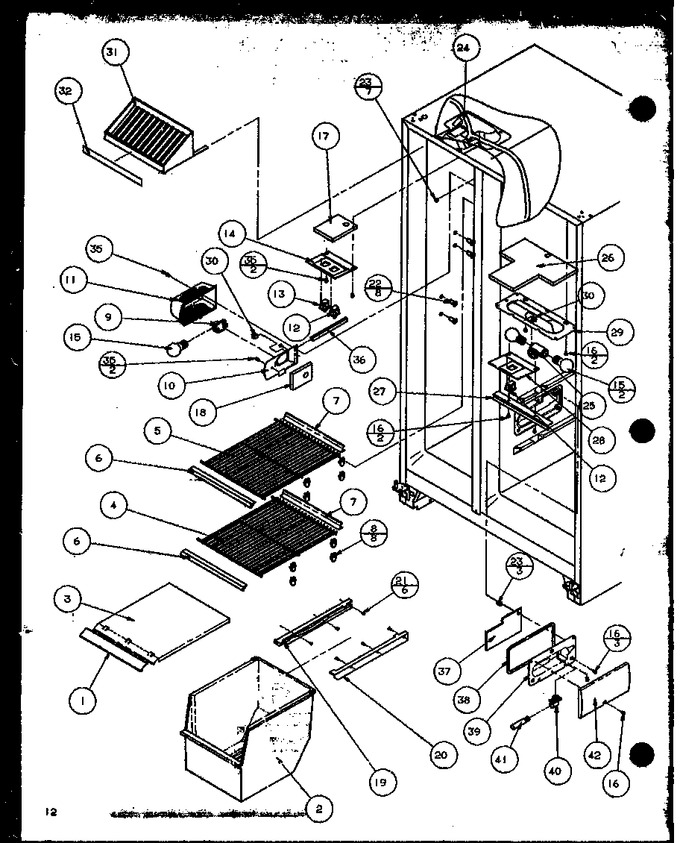

Diagram for 36271W (BOM: P1121801W W)
