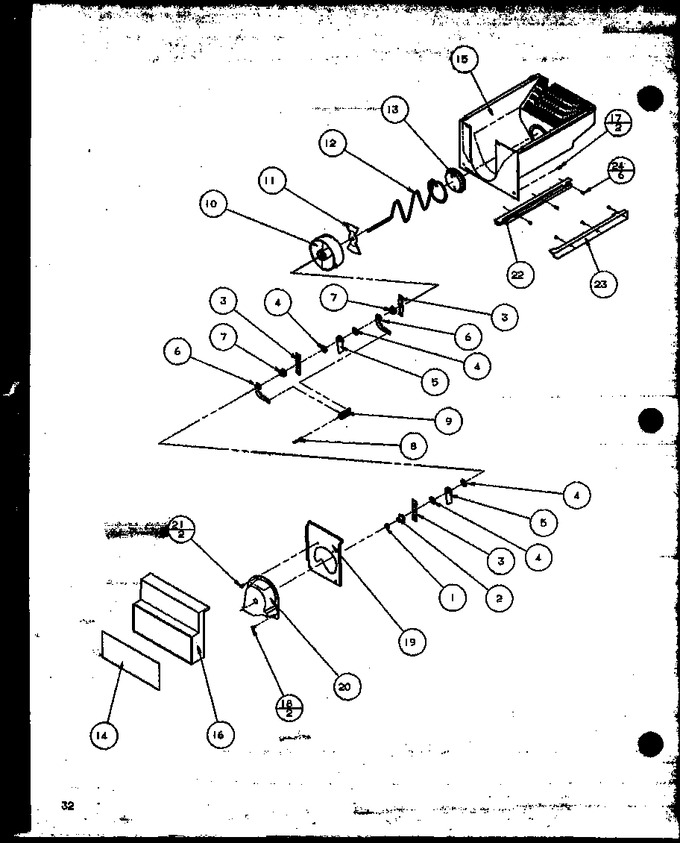

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPM0223101		Nut, Locking   (Replaces: M0223101)				$ 6.91
2	10113901		Spacer, Cover		Appelez-nous	-
3	10114501		Blade, Rotating		Appelez-nous	-
4	10275101		Washer, Waved		Appelez-nous	-
5	10275201		Damper, Ice		Appelez-nous	-
6	10114601		Blade, Static		Appelez-nous	-
7	10114301		Washer Stepped		Appelez-nous	-
8	M1200108		Pin, Roll		Appelez-nous	-
9	10114101		Anchor, Blade		Appelez-nous	-
10	10114702		Wheel, Crsh Ice		Appelez-nous	-
11	10113801		Bar, Crsh Ice Bucket				$ 4.96
12	10114401		Agitator, Ice				$ 107.74
13	WPD7749401		Cap, Helix End   (Replaces: D7749401)				$ 24.87
14	10099703		Insert Bkt Cfc 113		Appelez-nous	-
15	10111901		Bucket, Crushed Ice		Appelez-nous	-
16	10112001		Front-crsh Ice Brkt		Appelez-nous	-
17	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 6.26
18	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
19	10115001		Front, Ice Crusher				$ 25.55
20	10114002		Cover, Blade		Appelez-nous	-
21	M0220303		Screw, Tf		Appelez-nous	-
22	67005375		Glide-l Fz   (Replaces: D7849903)				$ 268.13
23	D7849904		Glide, Freezer Rh		Appelez-nous	-
24	M0213529		Screw		Appelez-nous	-
NI	WP12740302		Crushed Ice Agitator Assy   (Replaces: R0156803)				$ 453.92
