1 D7863002 Pad, Handle Inner (wht) Appelez-nous -
2 D7863102 Pad, Handle Outer (wht) Appelez-nous -
3 D7826603 Handle Appelez-nous -
4 M0215116 Screw Appelez-nous -
5 WP3400094 Screw   (Replaces: M0253942) Special Order $ 7.14

6 C8972402 Stop, Door Appelez-nous -
7 R0181181 Kit,dr Closure   (Replaces: D7751401) In-Stock Immediately $ 6.47

8 D7852103 Upper Trim Frz Dr (w) Appelez-nous -
9 D7854003 Trim Center Frz (w) Appelez-nous -
10 D7792703 Trim, Lwr Frz Door (w) Appelez-nous -
11 D7793002 Retainer, Trim Appelez-nous -
12 D7793102 Retainer, Trim Appelez-nous -
13 C8974102 Trim, Door Appelez-nous -
15 M0213815 Screw Appelez-nous -
16 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

18 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 7.20

19 10126501 Insulation, Hinge Cover Appelez-nous -
20 10126601 Foil, Hinge Cover V/a Appelez-nous -
21 10185101 Top Hinge-e Ct Appelez-nous -
22 10126401 Hinge Cover - Chrome Appelez-nous -
23 WP8281196 Screw, Mach   (Replaces: M0202336) In-Stock Immediately $ 6.47

24 R9800670 Kit, Screw   (Replaces: M0257244) Special Order $ 8.44

25 B8389001 Shim, Top Hinge Appelez-nous -
26 W11214483 Screw, Mach   (Replaces: M0202321) Special Order $ 12.62

27 10164202 Harness Fz Door Appelez-nous -
28 B8387701 Shim, Door Closure Appelez-nous -
29 B8387702 Shim, Door Closure Appelez-nous -
30 R0181181 Kit,dr Closure   (Replaces: D7748301) In-Stock Immediately $ 6.47

31 10163601 Bottom Hinge, Frz Appelez-nous -
32 B8386701 Kit,btm Hinge Shim Appelez-nous -
32 B8386702 Kit,btm Hinge Shim Appelez-nous -
32 B8386703 Kit,btm Hinge Shim Appelez-nous -
33 M0246258 Screw Appelez-nous -
34 WP489128 Screw   (Replaces: M0220417) Special Order $ 9.79

35 WPB5705307 Tubing Plastic   (Replaces: B5705308) Special Order $ 11.19

36 WP489399 Screw   (Replaces: M0232903) Special Order $ 6.26

37 A3012532 Tubing Plastic Appelez-nous -
38 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 7.03

42 M0216517 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

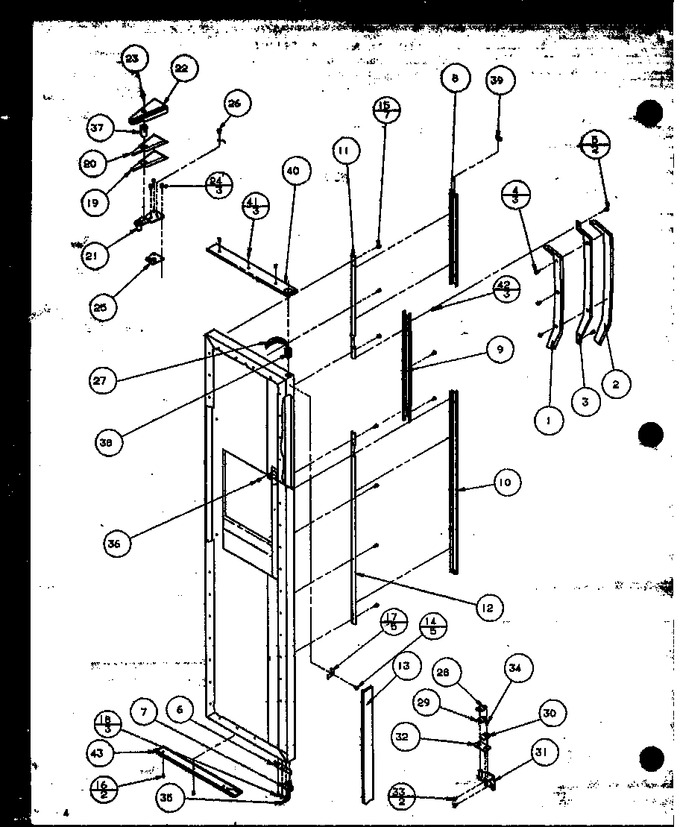

Diagram for 36271W (BOM: P1121801W W)
