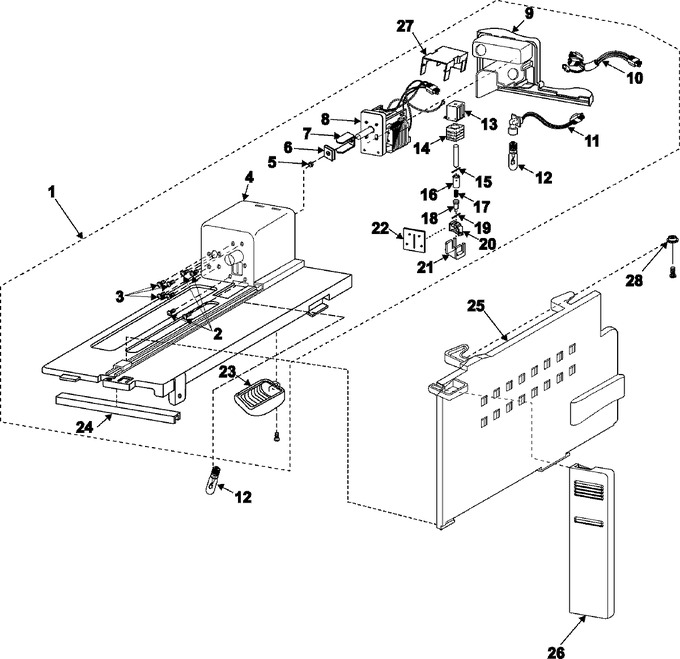

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-02134A		Assy Case-motor Auger		Appelez-nous	-
2	DA60-00001B		Screw-special;-,hex,-,-,l8.3,-				$ 1.66
3	DA60-00001A		Screw-special;-,hex,-,-,l8.3,-		Appelez-nous	-
4	DA61-00262E		Case-motor Auger		Appelez-nous	-
5	DA60-30108A		Nut-hex				$ 5.57
6	DA71-00163A		Fixer-nut			Immediately	$ 20.08
7	DA70-20017A		Plate-d/auger Disp				$ 34.51
8	DA31-00039F		Motor Geard		Appelez-nous	-
9	DA63-00776B		Cover-motor Auger(750);a-top,h		Appelez-nous	-
10	DA96-00036A		Assy-harness Sub,em		Appelez-nous	-
11	DA47-00112C		Lamp Holder		Appelez-nous	-
12	WPA3073101		Lamp-incandescent;130v,-,30w,b   (Replaces: 4713-001197)			Immediately	$ 10.90
13	DA74-40151G		Valve-solenoid			Immediately	$ 122.54
14	DA72-60348A		Seal-foam Pe		Appelez-nous	-
15	DA60-90137A		Pin-spring;sts304,-,l22,sr-s71		Appelez-nous	-
16	DA63-90008A		Bush-solenoid		Appelez-nous	-
17	DA61-20140A		Spring-solenoid				$ 0.85
18	DA66-90003A		Plnger-solenoid		Appelez-nous	-
19	DA60-90137B		Pin-spring;sts304,-,l16,sr-s71		Appelez-nous	-
20	DA65-20107A		Saddle-solenoid		Appelez-nous	-
21	DA61-60001A		Slider-solenoid Disp				$ 1.66
22	DA73-00168A		Rubber-solenoide		Appelez-nous	-
23	DA63-00785A		Cover Lamp-fre,disp		Appelez-nous	-
24	DA61-00239A		Support-case Motor Auger		Appelez-nous	-
25	DA67-00764B		Partition-cool(750);a-top,hips		Appelez-nous	-
26	DA63-00784B		Cover-cool		Appelez-nous	-
27	DA63-02012A		Cover-motor Auger		Appelez-nous	-
28	DA61-01797A		Fixer Grommet-door;t3-pjt,abs,				$ 0.85
