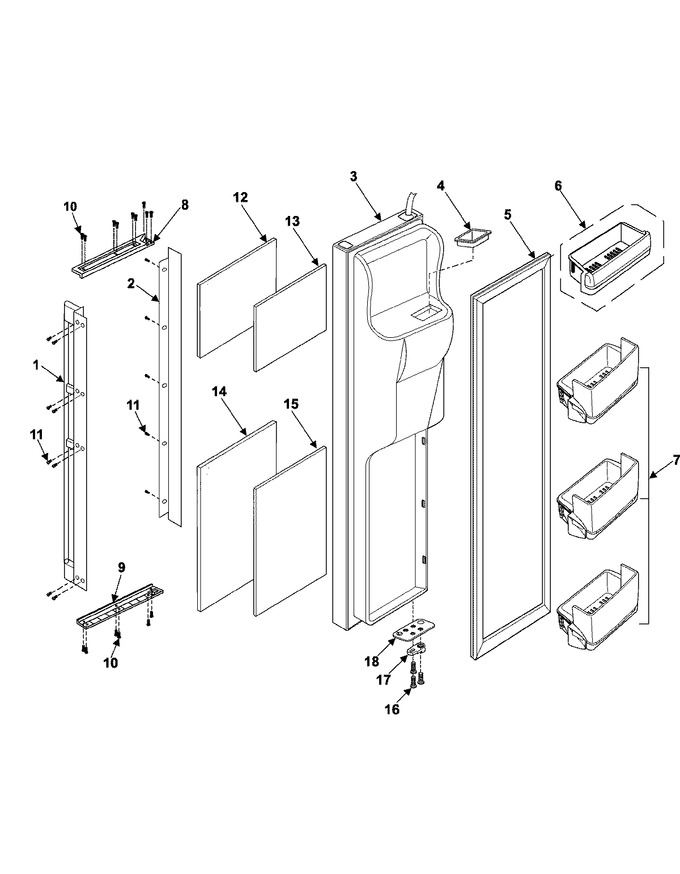

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-00502B		Assy Chassis-door In,fre		Appelez-nous	-
2	DA97-00498C		Assy Chassis-door Out,fre		Appelez-nous	-
3	DA91-01605C		Assy Door Foam Fre		Appelez-nous	-
4	DA67-00513B		Cap-chute Ice(85);a-top,cool-w		Appelez-nous	-
5	DA97-01800C		Assy-gasket Door,fre;a-top,w34		Appelez-nous	-
6	DA97-00695F		Assy Guard-fre Upp;a-top,hips,		Appelez-nous	-
7	DA97-00694F		Assy Guard Fre-low				$ 52.93
8	DA64-00573D		Chassis Door-door Fre Upp;a-to		Appelez-nous	-
9	DA97-00483F		Assy Chassis-fre Low;a-top(85)		Appelez-nous	-
10	6002-001122		Screw-tapping			Immediately	$ 1.66
11	6002-001364		Screw-tapping;fh,+,1,m4,l14,cr				$ 0.85
12	DA64-00673A		Decoration-al Plate		Appelez-nous	-
13	DA97-00522N		Assy-plate Deco,sub		Appelez-nous	-
14	DA64-00673B		Decoration-al Plate		Appelez-nous	-
15	DA97-00522H		Assy-plate Deco,sub		Appelez-nous	-
16	6001-001458		Screw-machine		Appelez-nous	-
17	DA66-00344A		Cam-hinge Riser Low				$ 1.66
18	DA61-00430A		Stopper Door				$ 14.72
