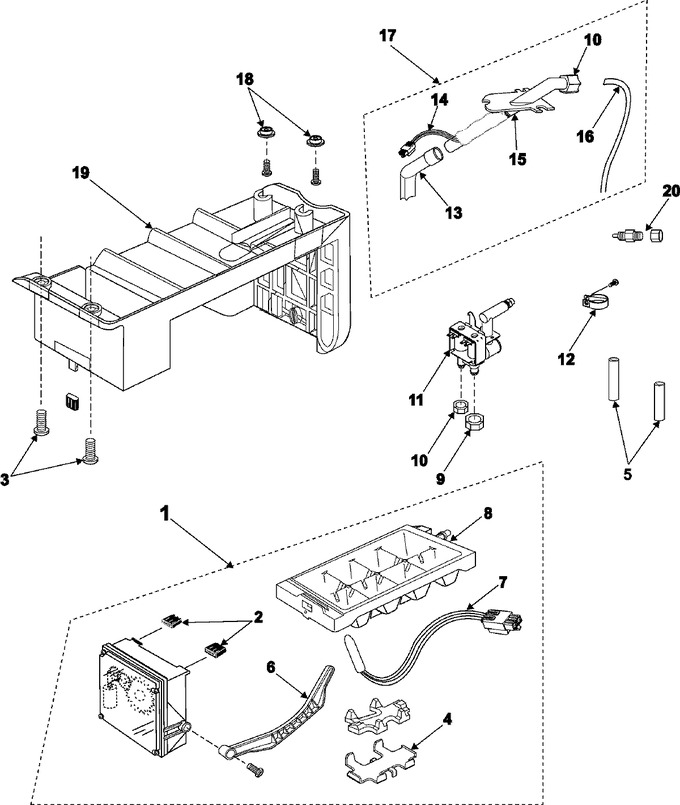

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	555555		Ice Maker (220v)   (Replaces: DA97-00258A)				$ 151.94
2	DA61-70254A		Supt-gasket;nbr,-,ice-maker,t2				$ 117.05
3	6002-001204		Screw-tapping				$ 0.85
4	DA63-11065A		Cover-sensor				$ 1.45
5	DA62-20001P		Tube Pvc				$ 6.38
6	DA61-00524A		Guide-ice,full				$ 8.47
7	DA71-20285A		Fixer-sensor		Appelez-nous	-
8	DA67-40334A		Tray Ice;sr-s6586/s7087,pp,t1		Appelez-nous	-
9	DA60-30105A		Nut-water Line				$ 1.66
10	DA60-30104A		Nut-water Line				$ 2.50
11	DA74-40149D		Valve, Water				$ 86.99
12	6502-000112		Clamp-cable		Appelez-nous	-
13	DA63-00969A		Grommet-pipe Water Fill,in		Appelez-nous	-
14	DA47-00110C		Heater-water Pipe				$ 28.70
15	DA97-00707A		Assy Pipe-water,sub		Appelez-nous	-
16	DA73-00070K		Pipe-water Line		Appelez-nous	-
17	DA97-01129G		Assy Pipe Water		Appelez-nous	-
18	DA61-01797A		Fixer Grommet-door;t3-pjt,abs,				$ 0.85
19	DA61-00244A		Support-ice Maker				$ 19.94
20	DA99-00240A		Compression Male Reducing Unio				$ 45.79
