SELECT A DIAGRAM

01 - Enclosure Assembly


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Home Station


08 - Ice Bin


09 - Icemaker


10 - Machine Compartment & Cabinet Back


11 - Refrigerator Compartment


12 - Refrigerator Door


13 - Refrigerator Shelves

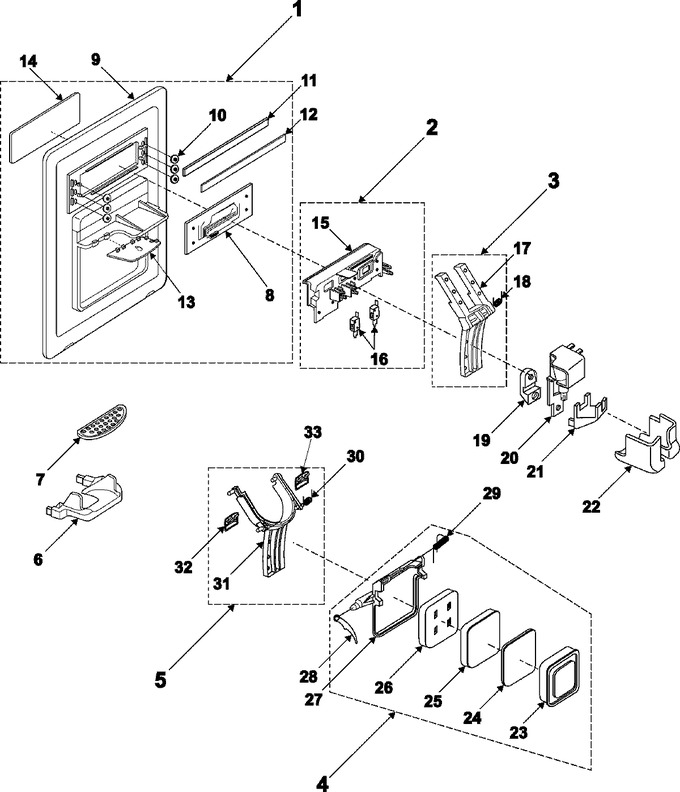

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-02137D		Assy Cover-dispenser;a-top,2co		Appelez-nous	-
2	DA97-00409D		Assy Cover-pcb,panel Rear				$ 50.15
3	DA97-00546D		Assy Lever Disp-water				$ 11.03
4	DA97-01437C		Assy Cover-ice Route;a-top,-,-				$ 40.94
5	DA97-00545A		Assy Lever Disp-ice		Appelez-nous	-
5	DA66-00140A		Lever-cube;a-top,mawr10,-,-,-,				$ 38.14
6	DA61-00670A		Guide-lever Disp		Appelez-nous	-
7	DA63-00843B		Tray-disp		Appelez-nous	-
8	555555		Pba Panel   (Replaces: DA41-00170A)				$ 151.94
9	DA63-01151V		Cover-dispenser;a-top,home-pad		Appelez-nous	-
10	DA64-00611A		Knob-touch		Appelez-nous	-
11	DA72-00427K		Seal-cutt Sponge;-,sponge,-,t3		Appelez-nous	-
12	Y00000000		See Note Tape Etc-al Currently Unavailable. Must Order Assy Cover-dispenser, Item No. 1		Appelez-nous	-
13	DA63-00994A		Cover-lamp Dispenser		Appelez-nous	-
14	DA63-01156A		Cover-control In		Appelez-nous	-
14	DA63-01152A		Cover-control Out		Appelez-nous	-
15	DA63-00816C		Cover-pcb Panel,rear				$ 22.17
16	DA34-00011A		Switch-micro				$ 13.75
17	DA66-00142B		Lever-disp Water		Appelez-nous	-
18	DA61-00338A		Spring-water Lever Disp				$ 3.23
19	DA61-00319A		Bracket-tube Pipe		Appelez-nous	-
20	DA74-40154C		Valve Solenoid		Appelez-nous	-
21	DA61-00316A		Support-time Delay		Appelez-nous	-
22	DA63-01047A		Cover-micro S/w		Appelez-nous	-
23	DA63-01823A		Gasket-cover Ice Route;a-top,s		Appelez-nous	-
24	Y00000000		See Note Seal Faom-lex Currently Unavailable. Must Order Cover Ice-route Assy, Item No. 4		Appelez-nous	-
25	DA63-00846A		Cover-ice Route,b		Appelez-nous	-
26	Y00000000		See Note Seal Foam-lex Currently Unavailable. Must Order Cover Ice-route Assy, Item No. 4		Appelez-nous	-
27	DA63-00844A		Cover-ice Route,a		Appelez-nous	-
28	DA61-00775A		Stopper-lever Disp;ntr,pom,a-t		Appelez-nous	-
29	DA61-00565A		Spring Etc-cover Ice,route				$ 4.00
30	DA61-00337A		Spring-ice Lever Disp		Appelez-nous	-
31	DA66-00141B		Lever-disp Ice		Appelez-nous	-
32	DA66-00156A		Lever-disp Sub B		Appelez-nous	-
33	DA66-00155A		Lever-disp Sub;a		Appelez-nous	-
