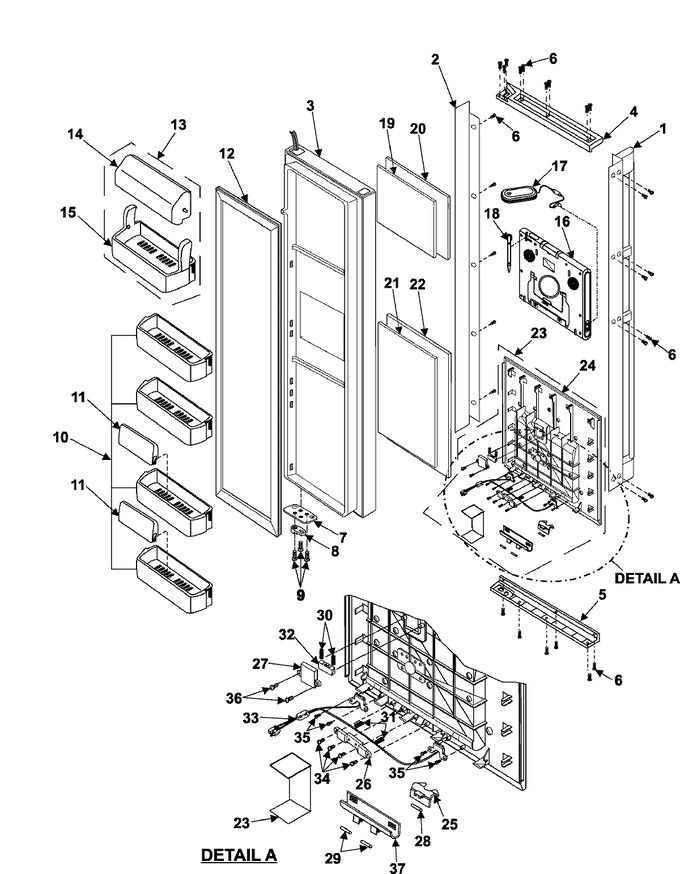

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Assy Chassis-door Ref In Currently Unavailable		Appelez-nous	-
2	DA97-00499C		Assy Chassis-door Out,ref		Appelez-nous	-
3	DA91-01606E		Assy Door Foam Ref		Appelez-nous	-
4	DA97-00596D		Assy Chassis-door-up,ref;a-top		Appelez-nous	-
5	DA97-00485F		Assy Chassis-ref Low;a-top(85)		Appelez-nous	-
6	6002-000458		Screw-tapping				$ 1.66
7	DA61-00430A		Stopper Door				$ 14.72
8	DA66-00344A		Cam-hinge Riser Low				$ 1.66
9	6001-001458		Screw-machine		Appelez-nous	-
10	DA97-00696D		Assy Guard-ref Low;a-top,exp,p				$ 84.33
11	DA71-00090A		Guide-bottle Ref				$ 10.60
12	DA63-30232M		Gasket Door-ref Assy				$ 112.63
13	DA97-00697D		Assy Guard-dairy(85);a-top,exp				$ 97.82
14	DA63-00825A		Cover-guard				$ 38.14
15	DA63-00836D		Guard-dairy(85);a-top,hips,coo				$ 74.73
16	Y00000000		See Note Home Pad Currently Unavailable		Appelez-nous	-
17	Y00000000		See Note Adapter Currently Unavailable		Appelez-nous	-
18	Y00000000		See Note Touch Pen Currently Unavailable		Appelez-nous	-
19	DA64-00673C		Decoration-al Plate		Appelez-nous	-
20	DA97-00522P		Assy-plate Deco,sub		Appelez-nous	-
21	DA64-00673D		Decoration-al Plate		Appelez-nous	-
22	DA97-00522K		Assy-plate Deco,sub		Appelez-nous	-
23	DA97-00712B		Assy Cover-trim,kit		Appelez-nous	-
24	DA63-01294A		Cover-trim Kit		Appelez-nous	-
25	DA63-01297A		Cover-trim Kit,a		Appelez-nous	-
26	Y00000000		See Note Fixer-pad Low Back Currently Unavailable		Appelez-nous	-
27	DA63-01296A		Cover-trim Kit,spring		Appelez-nous	-
28	DA66-00194A		Shaft-home Pad		Appelez-nous	-
29	DA66-00194B		Shaft-home Pad,b		Appelez-nous	-
30	DA61-00757A		Spring Etc-home Pad		Appelez-nous	-
31	DA61-00757B		Spring Etc-pad Low		Appelez-nous	-
32	Y00000000		See Note Fixer-trim Kit Spring Currently Unavailable		Appelez-nous	-
33	DA96-00051A		Assy-charge Wire		Appelez-nous	-
34	6002-000630		Screw-tapping				$ 0.85
35	Y00000000		See Note Screw-tapping Th,m4 X L10 Currently Unavailable		Appelez-nous	-
36	Y00000000		See Note Screw-tapping Th,m4 X L16 Currently Unavailable		Appelez-nous	-
37	Y00000000		See Note Fixer Home Pad Low Currently Unavailable		Appelez-nous	-
