01 - Enclosure Assembly


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Home Station


08 - Ice Bin


09 - Icemaker


10 - Machine Compartment & Cabinet Back


11 - Refrigerator Compartment


12 - Refrigerator Door


13 - Refrigerator Shelves

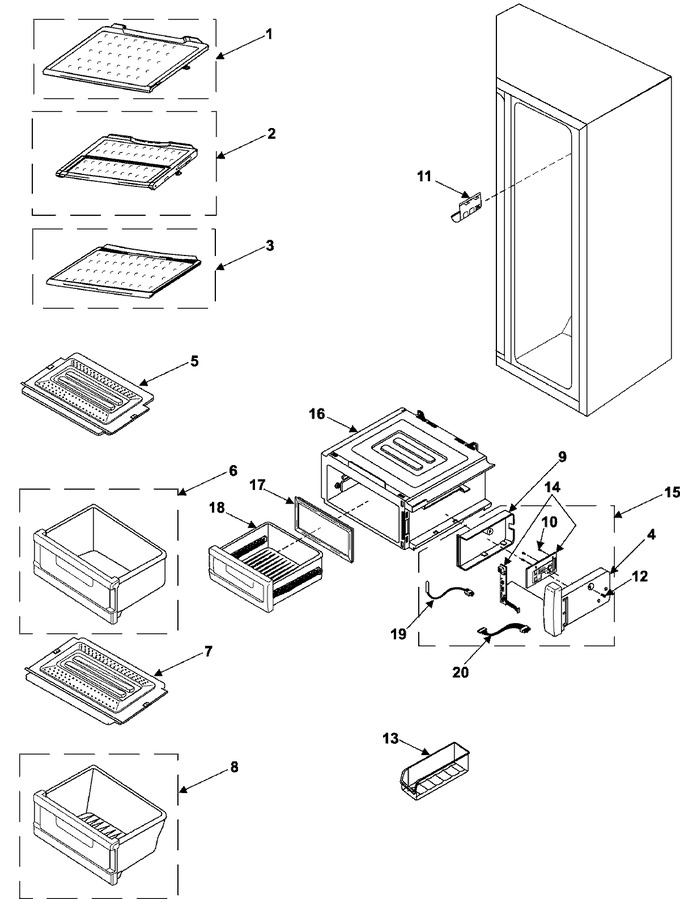

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA67-00516E		Shelf Ref-up(750);best-buy,pp,		Appelez-nous	-
2	DA97-00199N		Assy Shelf-fold;a-top(750lt),c		Appelez-nous	-
3	DA67-00686A		Shelf Ref-low		Appelez-nous	-
4	DA61-00277C		Case Control-convertible		Appelez-nous	-
5	DA63-00810A		Cover-veg,up		Appelez-nous	-
6	555555		Assy Case-veg,up(750);a-top,ex   (Replaces: DA97-00144N)				$ 151.94
7	DA63-00811A		Cover-veg,low		Appelez-nous	-
8	555555		Assy Case-veg,low(750);a-top,e   (Replaces: DA97-00148N)				$ 151.94
9	Y00000000		See Note Case-control Convert, B Currently Unavailable		Appelez-nous	-
10	6002-000630		Screw-tapping				$ 0.85
11	DA67-00145B		Shelf-wine;a-top,hips,cool-whi		Appelez-nous	-
12	6002-000213		Screw-tapping			Immediately	$ 0.93
13	DA67-40250E		Tray-utility				$ 56.08
14	DA41-00108A		Pba Sub				$ 129.69
15	Y00000000		See Note Assy-case Conv, Sub Currently Unavailable		Appelez-nous	-
16	DA97-02087M		Assy-case-convertible		Appelez-nous	-
17	DA63-01783C		Gasket-convertible;a-top,sf-pv		Appelez-nous	-
18	555555		Assy Tray-convertible(750);a-t   (Replaces: DA97-00371J)				$ 151.94
19	DA32-10109X		Sensor Assy				$ 25.99
20	DA39-00215A		Wire Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
