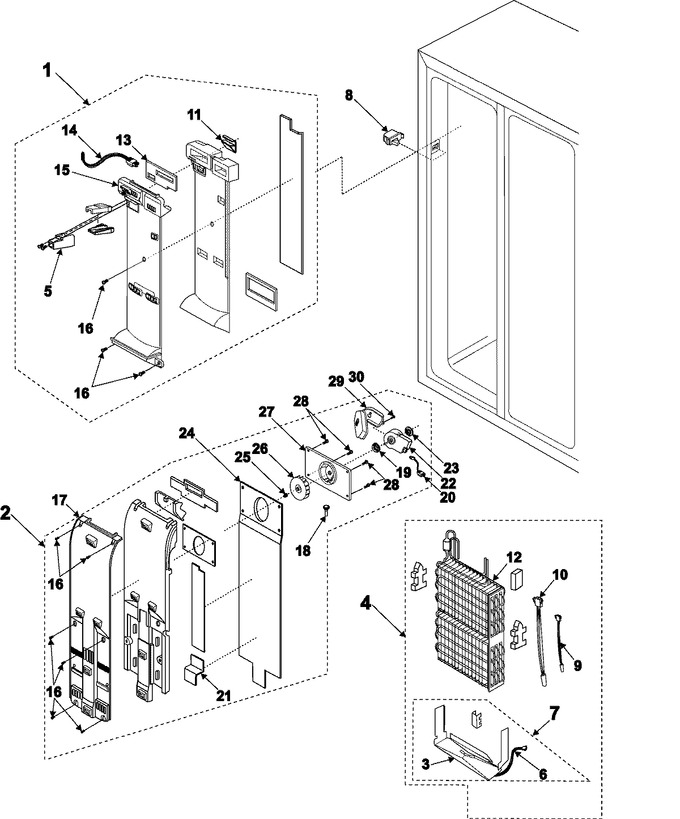

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-02006A		Assy Cover-multi Fre,disp;bby,		Appelez-nous	-
2	DA97-00466U		Assy Cover-evap Fre;best-buy,e		Appelez-nous	-
3	DA61-00477A		Plate-drain,fre				$ 45.79
4	555555		Evap Assy   (Replaces: DA96-00021N)				$ 151.94
5	DA63-02179A		Cover-multi Fre,sub;bby,abs,t2		Appelez-nous	-
6	DA47-00090C		Heater Drain-fre				$ 73.83
7	DA97-00111C		Drain, Heater				$ 90.31
8	DA34-10120E		Switch Door-f;-,slide,-,-,250v			Immediately	$ 39.74
9	DA32-10105R		Sensor Assy			Immediately	$ 34.37
10	DA47-10160H		Thermo Bimetal				$ 79.38
11	DA61-00495B		Guide-multi Fre,upp;bby,abs,t1		Appelez-nous	-
12	DA59-00233H		Evap Fre		Appelez-nous	-
13	DA62-00168A		Seal-sensor Fre,disp		Appelez-nous	-
14	DA32-10109W		Sensor Assembly			Immediately	$ 25.43
15	DA63-02181A		Cover-multi Fre,disp;bby,pp,t2		Appelez-nous	-
16	WP1163283		Screw-tapping   (Replaces: 6002-000473)				$ 6.47
17	DA63-00797D		Cover Evap-fre;a-top,exp,cool-				$ 68.00
18	DA63-40167A		Grommet-cover Chil				$ 2.50
19	DA63-01146A		Grommet-motor				$ 6.95
20	DA39-00060K		W/harness Motor				$ 118.35
21	DA61-00412A		Guide Air-fre		Appelez-nous	-
22	DA31-00020E		Motor Dc-bldc,drep3020la,fre				$ 131.27
23	DA63-01808A		Grommet-motor(bldc)			Immediately	$ 5.57
24	DA62-00077C		Seal-duct Fre,re		Appelez-nous	-
25	DA61-20128A		Spring-fan				$ 0.85
26	DA31-00053A		Fan-backward				$ 18.68
27	DA61-00417A		Case Motor				$ 19.40
28	6002-001197		Screw-tapping;th,+,1,m4,l16,sn		Appelez-nous	-
29	DA63-01809A		Cover Motor-bldc				$ 12.12
30	6002-000471		Screw-tapping;th,+,1,m4,l12,-,				$ 0.85
