SELECT A DIAGRAM

01 - Enclosure Assembly


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Home Station


08 - Ice Bin


09 - Icemaker


10 - Machine Compartment & Cabinet Back


11 - Refrigerator Compartment


12 - Refrigerator Door


13 - Refrigerator Shelves

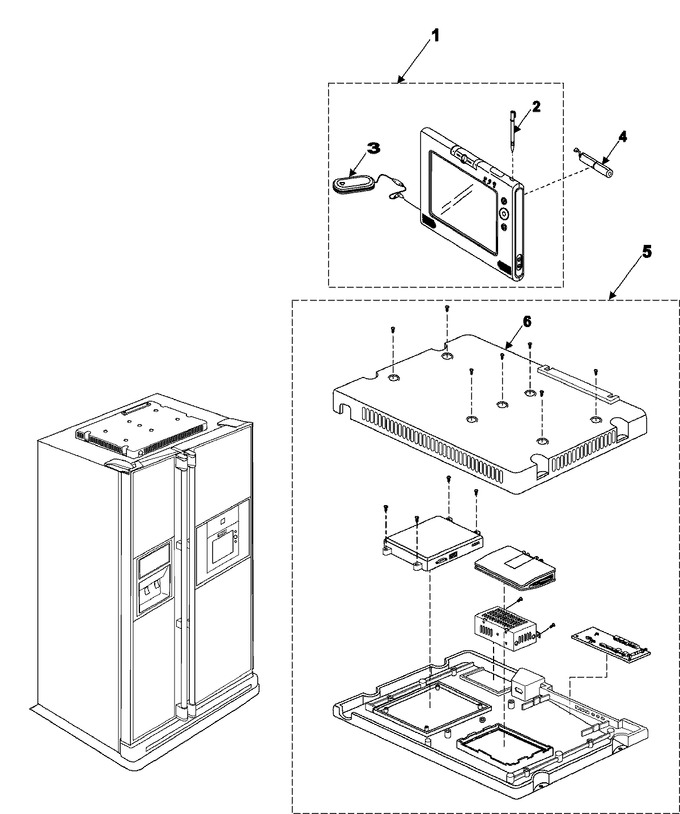

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA59-00274A		Touch/pnl-web Pad(repair Only)		Appelez-nous	-
2	Y00000000		See Note Touch Pen Currently Unavailable		Appelez-nous	-
3	DA61-01084A		Assy Ac Adapter;home Pad Lcd		Appelez-nous	-
4	Y00000000		See Note Battery Currently Unavailable		Appelez-nous	-
5	Y00000000		See Note Assy Home Pad System Currently Unavailable Includes Gateway, Access Station, Smps Pcb, A/v Board		Appelez-nous	-
6	DA63-01293A		Cover-control Base		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
