SELECT A DIAGRAM

01 - Enclosure Assembly


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Home Station


08 - Ice Bin


09 - Icemaker


10 - Machine Compartment & Cabinet Back


11 - Refrigerator Compartment


12 - Refrigerator Door


13 - Refrigerator Shelves

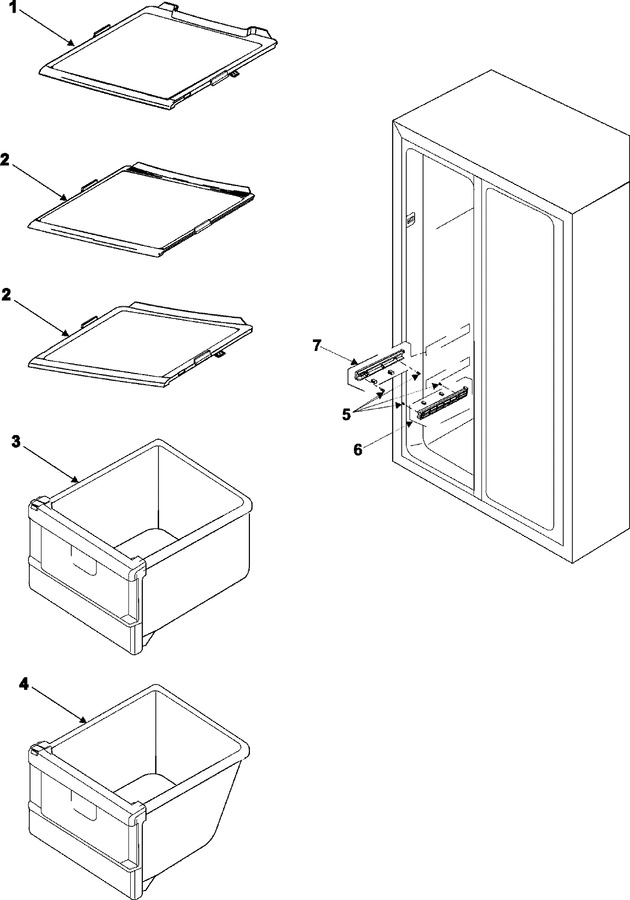

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-00157G		Assy Shelf-fre,mid(750);cool-w		Appelez-nous	-
2	DA97-00158K		Assy Shelf-low,fre(750);cool-w				$ 64.22
3	DA97-00142N		Assy Case-basket,up(750);a-top		Appelez-nous	-
4	DA97-00143N		Assy Case-basket,low(750);a-to				$ 125.70
5	DA63-00202A		Grommet-rail				$ 0.74
6	DA97-00730B		Assy Rail-basket,r		Appelez-nous	-
7	DA97-00731B		Assy Rail-basket,l		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
