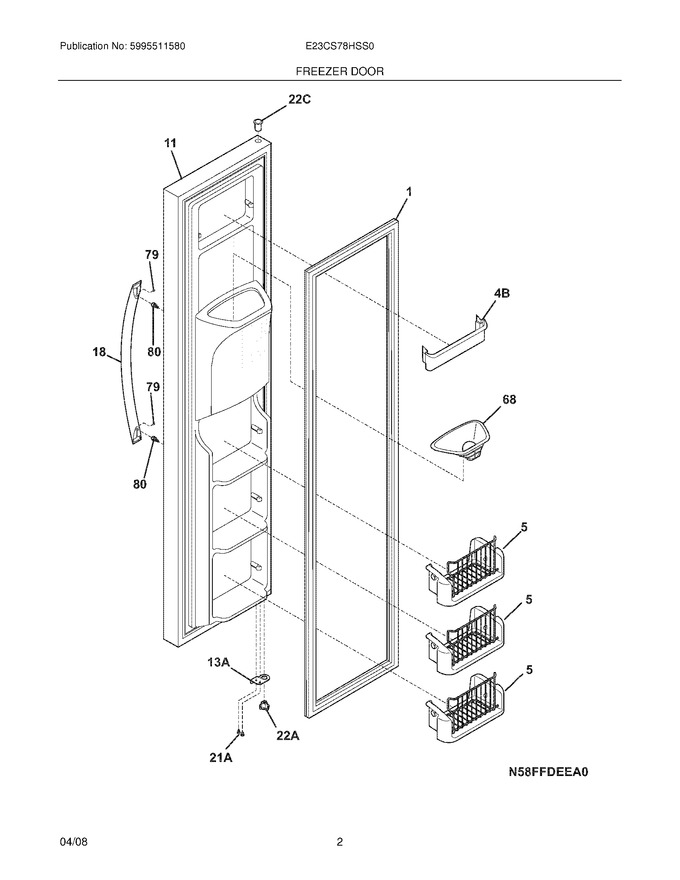

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	7241545006		Bin-tilt Out,tilt-out		Appelez-nous	-
11	241837126		Door-frzr,stainless ,complete Assy				$ 517.30
18	7241531401		Handle-door,stainless Steel ,with Set Screw		Appelez-nous	-
68	7241525101		Chute-ice		Appelez-nous	-
79	218755405		Screw-set,10-32 X 0.375   (Replaces: 7218755402)			Immediately	$ 20.56
80	7241531502		Screw-shoulder,no.10 Ab ,handle Mounting		Appelez-nous	-
13A	7240581906		Door Stop,black ,frzr		Appelez-nous	-
21A	7240598402		Screw,10-32 X 1/2		Appelez-nous	-
22A	7240328204		Bearing-hinge(frz),black ,closer		Appelez-nous	-
22C	7240328404		Bearing-hinge,black ,upper		Appelez-nous	-
4B	7241808218		Bin-door,frzr-upper		Appelez-nous	-
F1	241510202		Gasket-frzr Door,white ,magnetic   (Replaces: 7241510202)				$ 286.53
NI	7240552102		Harness-wiring,door		Appelez-nous	-
NI	7241806601		Connector-water,straight		Appelez-nous	-
NI	5303918256		Dispenser Heater Kit   (Replaces: 75303918256)				$ 474.16

    View Diagram in Separate Window       Print Part List
