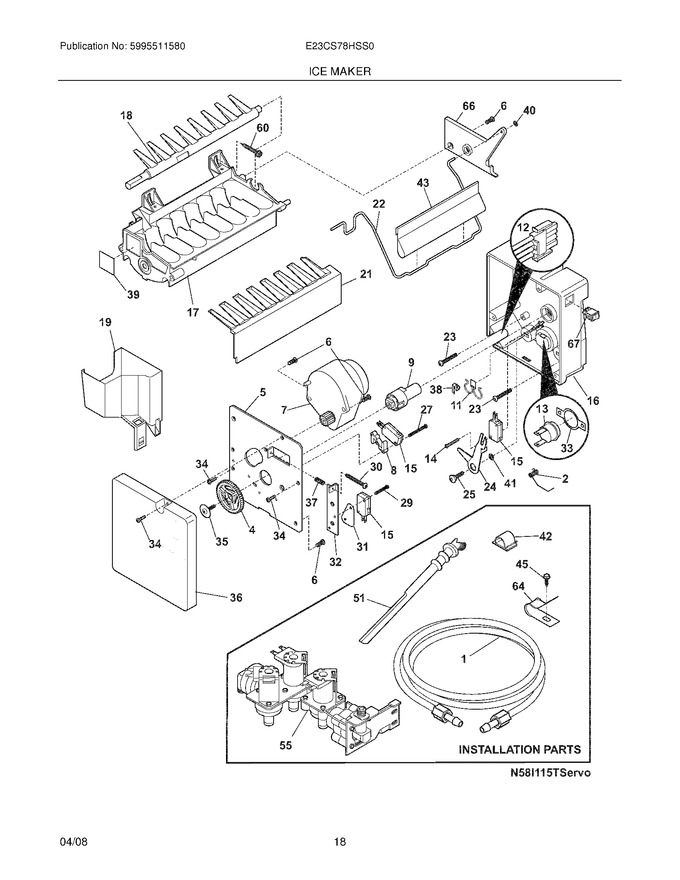

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976409 | Tube,water ,door (Replaces: 7218976409) |
|
Immediately | $ 60.25 | ||||
| 2 | 75304459922 | Spring,shut-off Arm |
|
- | |||||
| 4 | 75304458380 | Gear |
|
- | |||||
| 5 | 75304458383 | Plate-mounting |
|
- | |||||
| 6 | 75304458386 | Screw |
|
- | |||||
| 8 | 75304458388 | Spacer-hold Switch |
|
- | |||||
| 9 | 75304456662 | Cam |
|
- | |||||
| 12 | 75304458379 | Harness-wiring |
|
- | |||||
| 13 | 75304456665 | Thermostat,ice Maker |
|
- | |||||
| 14 | 75304458384 | Screw |
|
- | |||||
| 16 | 75304458395 | Housing,control |
|
- | |||||
| 17 | 75304456669 | Mold-ice Maker,w/therm Cut Off |
|
- | |||||
| 18 | 75304458377 | Ejector-ice |
|
- | |||||
| 19 | 75304458378 | Cup-water Inlet |
|
- | |||||
| 21 | 75304458390 | Ice Stripper |
|
- | |||||
| 22 | 75304458375 | Shut-off Arm |
|
- | |||||
| 23 | 75304458394 | Screw |
|
- | |||||
| 24 | 75304458391 | Lever Arm |
|
- | |||||
| 25 | 75304456676 | Screw,m 4x12.8 No.2 ,lever Arm/sprt |
|
- | |||||
| 27 | 75304458385 | Screw |
|
- | |||||
| 29 | 75304458393 | Screw |
|
- | |||||
| 30 | 75304458387 | Screw |
|
- | |||||
| 31 | 75304458381 | Insulator |
|
- | |||||
| 32 | 75304456681 | Plate-valve Switch |
|
- | |||||
| 33 | 75304458403 | Retainer-thermostat |
|
- | |||||
| 34 | 75304456678 | Screw,m 3x12 No.3 ,(2) |
|
- | |||||
| 35 | 75304456684 | Screw |
|
- | |||||
| 36 | 75304458376 | Cover-ice Maker |
|
- | |||||
| 37 | 75304456682 | Spring,timing Adjust |
|
- | |||||
| 38 | 75304458398 | Clip |
|
- | |||||
| 39 | 75304458399 | Conductor-heat |
|
- | |||||
| 40 | 75304458401 | Clip-retainer |
|
- | |||||
| 41 | 75304458389 | Screw |
|
- | |||||
| 42 | 7218515403 | Clip-grille |
|
- | |||||
| 43 | 241720601 | Extension (Replaces: 7241720601) |
|
$ 20.56 | |||||
| 45 | 75304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
- | |||||
| 51 | 7241796402 | Tube-water Fill,extension |
|
- | |||||
| 60 | 75304455651 | Screw,hex Washer Head ,8-15a X 0.500 |
|
- | |||||
| 64 | 75304455846 | Clamp,.31 Id ,steel ,water Tube |
|
- | |||||
| 66 | 75304458374 | Bracket-ice Maker |
|
- | |||||
| 67 | 75304458392 | Switch-on/off |
|
- | |||||
| F11 | 75304458400 | Thermal Cutoff,ice Maker |
|
- | |||||
| F15 | 75304456667 | Switch-micro,(3) |
|
- | |||||
| F55 | 242252702 | Valve-water,triple Solenoid (Replaces: 7241734301) |
|
Immediately | $ 132.71 | ||||
| F7 | 75304458382 | Motor-ice Maker Svo |
|
- | |||||
| FNI | 7240352601 | Wiring Harness,internal ,with Plug |
|
- | |||||
| NI | 7218709101 | Screw,hex Head ,10-32 X 0.500 |
|
- | |||||
| NI | 7240363602 | Screw-shoulder |
|
- | |||||
| NI | 7240542901 | Cap-water Valve |
|
- | |||||
| NI | 218976421 | Tube-water Inlet,valve To Door (Replaces: 7218976421) |
|
$ 20.56 | |||||
| NI | 7218976915 | Tube-water Inlet,inlet Valve ,to Filter |
|
- | |||||
| NI | 7240561702 | Seal-water Inlet,inlet Valve ,to Ice Maker |
|
- | |||||
| NI | 7241583301 | Deflector-air,ice Maker |
|
- | |||||
| NI | 7241806601 | Connector-water,straight |
|
- | |||||
| NI | 75304456660 | Screw,m 4x6 No.2 |
|
- | |||||
| NI | 75304456689 | Washer,nylon |
|
- | |||||
| NI | 7218976418 | Tube-water Inlet,inlet Valve ,to Filter |
|
- | |||||
| NI | 5303918344 | Ice Maker,radius Cube ,115 V ,no Instl Parts (Replaces: 7241709801) |
|
Immediately | $ 178.39 |
