SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves

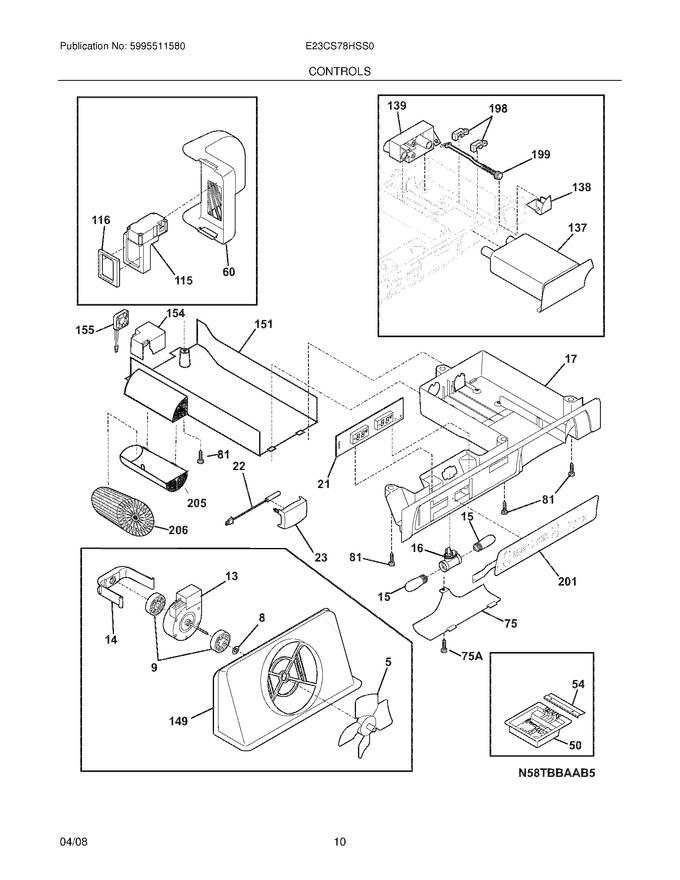

11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	7215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft		Appelez-nous	-
9	7241518301		Bushing,motor Mounting		Appelez-nous	-
13	809069220		Motor,evaporator Fan   (Replaces: 7241509402)			Immediately	$ 154.14
14	242135301		Clip,evap Fan Motor   (Replaces: 7241517701)				$ 7.79
15	5304517886		Light Bulb   (Replaces: 7241552801)			Immediately	$ 73.06
16	7241622802		Socket-light		Appelez-nous	-
17	7241516201		Box-control,front		Appelez-nous	-
21	7241528201		Control-temperature		Appelez-nous	-
22	240597220		Sensor   (Replaces: 7240597203)			Immediately	$ 5.16
23	7241512901		Cover-sensor		Appelez-nous	-
50	7241511102		Board-main Power		Appelez-nous	-
54	241532401		Channel   (Replaces: 7241532401)				$ 30.47
60	7241510301		Diffuser-air		Appelez-nous	-
75	7241517802		Shield-light		Appelez-nous	-
81	75304455658		Screw,hx Wshr Hd Sems ,8-15a X 0.625		Appelez-nous	-
115	7241518501		Damper,motorized		Appelez-nous	-
116	7241518601		Seal-damper,foam		Appelez-nous	-
138	7240397301		Button-filter Release		Appelez-nous	-
139	240396002		Base-water Filter   (Replaces: 7240396002)			Immediately	$ 119.66
139	7240526901		O-ring,wtr Filter Base		Appelez-nous	-
149	7241528304		Seal,foam ,evap Fan Assy		Appelez-nous	-
149	7241517601		Shroud-evap Fan Mtg		Appelez-nous	-
151	7241526001		Filter Housing		Appelez-nous	-
154	7241525801		Duct-air		Appelez-nous	-
155	7241527202		Harness-wiring,filter Fan		Appelez-nous	-
155	7241526102		Motor-air Filter		Appelez-nous	-
198	7240397401		Retainer		Appelez-nous	-
199	7240398401		Spring-filter Release Rod		Appelez-nous	-
199	7240397501		Rod		Appelez-nous	-
201	7240596910		Switch-membrane		Appelez-nous	-
205	7241525901		Air Filter Door		Appelez-nous	-
206	7241504902		Filter-air		Appelez-nous	-
75A	75304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile		Appelez-nous	-
F137	7240396701		Bypass,water Filter ,optional Part		Appelez-nous	-
F137	7240396405		Filter,water ,carbon Cassette ,front ,with O`rings		Appelez-nous	-
F5	5308000010		Fan Blade,red ,evaporator Fan   (Replaces: 75308000010)			Immediately	$ 49.03
FNI	7241510802		Harness-wiring,control Box		Appelez-nous	-
NI	7241527201		Harness-wiring,filter Fan		Appelez-nous	-
NI	7241532501		Clip-harness		Appelez-nous	-
NI	7241524802		Seal,housing		Appelez-nous	-
NI	75304455649		Screw,pan Hd ,6-20 X 0.438		Appelez-nous	-
NI	7241510501		Seal-diffuser		Appelez-nous	-
NI	73205266		Edge Protector,wiring Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
