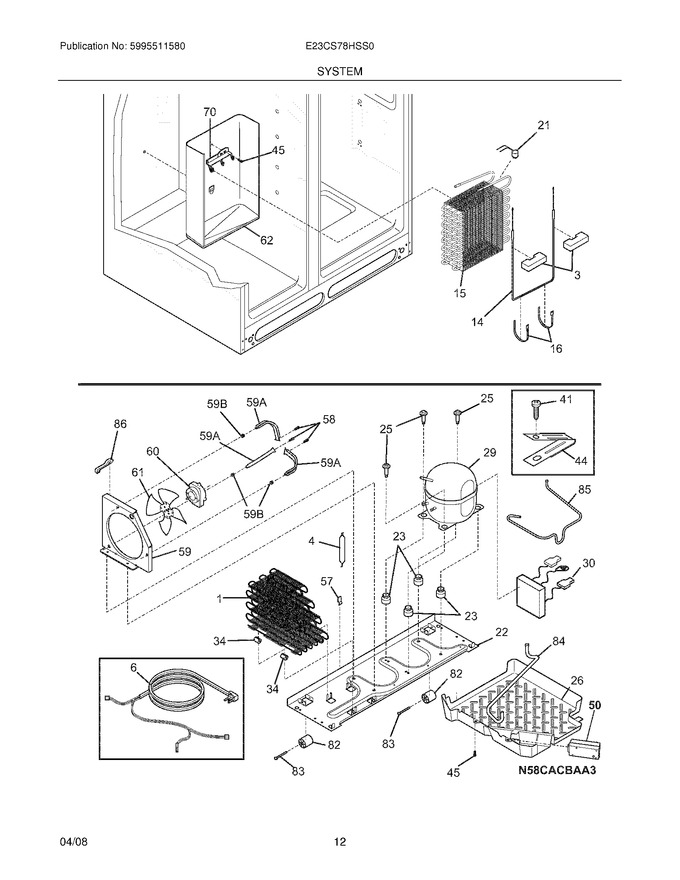

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7240333605		Condenser		Appelez-nous	-
3	7218679607		Block-evap Coil,styrofoam ,(2)		Appelez-nous	-
6	241516904		Cord-service   (Replaces: 7241516901)			Immediately	$ 38.68
16	75308000110		Strap-evap/heater,aluminum ,(2)		Appelez-nous	-
21	5303918214		Thermostat-defrost,kit   (Replaces: 75303918214)			Immediately	$ 33.42
22	7240330011		Base-compressor Mtg		Appelez-nous	-
23	7218513300		Grommet-compr Mtg,(4)		Appelez-nous	-
25	7240491503		Screw-compressor Mtg,1/4-28 X 1.16 ,(4)		Appelez-nous	-
26	241697502		Pan-defrost Drain   (Replaces: 7241697501)				$ 156.92
30	241577501		Invertor   (Replaces: 7241577501)				$ 346.78
34	7240405201		Grommet,rubber ,black ,cond Tube/wire		Appelez-nous	-
41	7240555002		Screw-no.8-32 X 3/8		Appelez-nous	-
44	7215174700		Clamp-service Cord,strain Relief ,galv Steel		Appelez-nous	-
45	75304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile		Appelez-nous	-
50	7241635501		Housing-control,apollo Lighting		Appelez-nous	-
57	7240542601		Clip-wiring Harness		Appelez-nous	-
58	241953902		Screw,hex Washer Head ,8-18 X 3/8   (Replaces: 7240433203)			Immediately	$ 17.11
59	7240315502		Shroud-cond Fan		Appelez-nous	-
60	297279500		Motor-condenser Fan   (Replaces: 7241584301)			Immediately	$ 141.66
61	7241639501		Blade-condenser Fan		Appelez-nous	-
62	7240429402		Trough-drain		Appelez-nous	-
70	7218990801		Bracket-evap/cvr Mtg		Appelez-nous	-
82	5304418225		Roller,compressor Base ,rear ,(2)   (Replaces: 75304418225)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin   (Replaces: 75304455655)			Immediately	$ 35.34
84	241957901		Tube-drain,lower   (Replaces: 75304421068)				$ 60.96
85	7241719501		Tube-connector,suction		Appelez-nous	-
86	7240409302		Spacer-cond Tube,black		Appelez-nous	-
59A	7240346501		Bracket-support,cond Mtr ,(3)		Appelez-nous	-
59B	7240346601		Grommet-bracket,(3)		Appelez-nous	-
F14	7240316107		Heater-defrost		Appelez-nous	-
F15	5303918284		Evaporator Kit   (Replaces: 75303918284)				$ 481.01
F29	5304475104		Compressor,w/electricals   (Replaces: 7241547601)				$ 825.22
F4	7218944001		Drier-filter,r134a System		Appelez-nous	-
FNI	7241636203		Harness-wiring,machine Compt		Appelez-nous	-
FNI	7241510802		Harness-wiring,control Box		Appelez-nous	-
FNI	75303918327		Heat Exchanger Kit,suction Line		Appelez-nous	-
NI	7218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500		Appelez-nous	-
NI	7240359403		Screw-fan Shroud,(2)		Appelez-nous	-
NI	75303918222		Hot Tube Repair Kit,service		Appelez-nous	-
NI	7240346701		Tape-foam Seal,shroud		Appelez-nous	-
NI	7241641501		Screw		Appelez-nous	-
NI	7241520403		Harness-wiring		Appelez-nous	-
NI	7241527202		Harness-wiring,filter Fan		Appelez-nous	-
