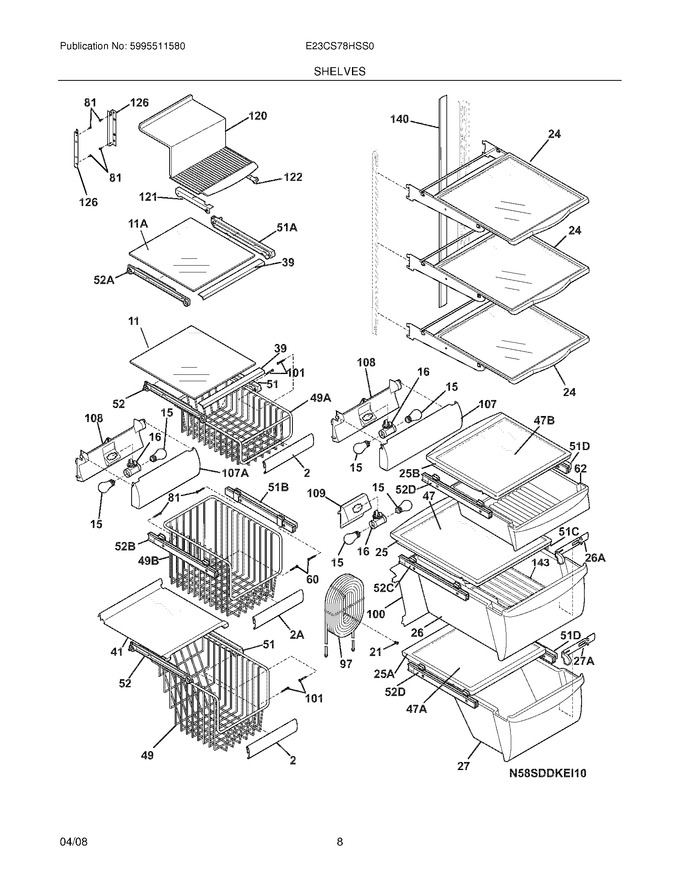

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	7241539502		Trim-basket		Appelez-nous	-
11	241711213		Shelf-freezer,glass ,lower   (Replaces: 7240443357)				$ 86.45
15	5304517886		Light Bulb   (Replaces: 7241552801)			Immediately	$ 73.06
16	7241622802		Socket-light		Appelez-nous	-
21	75304455658		Screw,hx Wshr Hd Sems ,8-15a X 0.625		Appelez-nous	-
24	7241753102		Shelf-``spill-safe``,cantilever ,sliding		Appelez-nous	-
25	7241565002		Cover-crisper Pan,upper		Appelez-nous	-
26	7240351049		Pan-crisper,upper		Appelez-nous	-
27	240351240		Pan-crisper,lower   (Replaces: 7240351225)				$ 203.45
39	7240367604		Trim-shelf,front		Appelez-nous	-
41	7241637601		Baffle-air		Appelez-nous	-
47	240350649		Insert-pan Cover,glass   (Replaces: 7240350649)			Immediately	$ 123.89
49	7241541802		Basket-sliding		Appelez-nous	-
51	7241514501		Hanger-basket,rh		Appelez-nous	-
52	7241514601		Hanger-basket,lh		Appelez-nous	-
60	7218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)		Appelez-nous	-
62	240599706		Pan-meat   (Replaces: 7240599706)			Immediately	$ 358.66
81	75304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile		Appelez-nous	-
97	7241532005		Water Tank		Appelez-nous	-
100	7240326304		Cover-water Tank		Appelez-nous	-
101	7218493101		Screw,hex Washer Head ,8-18ab X 1-3/4		Appelez-nous	-
107	7241513402		Shield-light,meat Pan		Appelez-nous	-
107	7241521802		Shield-light,frzr		Appelez-nous	-
108	7241513301		Cover-wiring,meat Pan Light		Appelez-nous	-
109	7241513202		Base-crisper Light Socket		Appelez-nous	-
120	7241691701		Shelf-ice Cream		Appelez-nous	-
121	7241504701		Rail-ice Cream Shelf,lh		Appelez-nous	-
122	7241504702		Rail-ice Cream Shelf,rh		Appelez-nous	-
126	7241674401		Channel,auger Mtg ,lh		Appelez-nous	-
140	7240430505		Channel,wtr Tube Cover		Appelez-nous	-
143	7240423305		Divider-crisper Pan		Appelez-nous	-
11A	7240443358		Shelf-freezer,glass ,upper		Appelez-nous	-
126A	7241674402		Channel,auger Mtg ,rh		Appelez-nous	-
25A	7241564301		Cover-crisper Pan,lower		Appelez-nous	-
25B	7241565701		Cover-meat Pan		Appelez-nous	-
26A	7241638201		Control-humidity		Appelez-nous	-
26A	241638101		Frame-humidity Control   (Replaces: 7241638101)				$ 51.74
27A	240362201		Control-humidity   (Replaces: 7240362201)				$ 69.46
2A	7241539501		Trim-basket		Appelez-nous	-
47A	240350603		Insert-pan Cover,glass   (Replaces: 7240350603)			Immediately	$ 115.52
47B	7240443356		Insert-pan Cover,glass		Appelez-nous	-
49A	7241541902		Basket-sliding,upper ,half		Appelez-nous	-
49B	7241541702		Basket-sliding,mid		Appelez-nous	-
51A	7241514701		Hanger-shelf Glass,rh		Appelez-nous	-
51B	7240579803		Hanger-basket,rh		Appelez-nous	-
51C	240579821		Hanger-basket,rh   (Replaces: 7240579807)			Immediately	$ 125.45
51D	240579822		Hanger-basket,rh   (Replaces: 7240579808)				$ 102.06
52A	7241514801		Hanger-shelf Glass,lh		Appelez-nous	-
52B	7240579804		Hanger-basket,lh		Appelez-nous	-
52C	240579819		Hanger-basket,lh   (Replaces: 7240579805)				$ 113.00
52D	240579820		Hanger-basket,lh   (Replaces: 7240579806)				$ 100.65
NI	7241595202		Clip-slide,pan-crisper		Appelez-nous	-
NI	7241513102		Harness-wiring		Appelez-nous	-
NI	7241510802		Harness-wiring,control Box		Appelez-nous	-
NI	7241868034		Energy Guide		Appelez-nous	-
