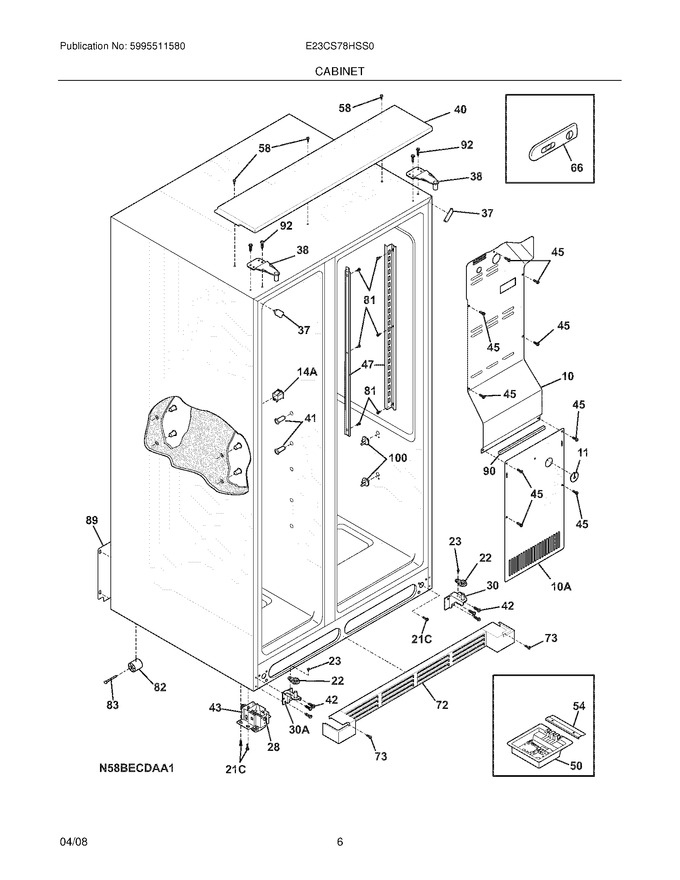

07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	7241509804		Cover-air Duct		Appelez-nous	-
11	7241529301		Plug-hole,factory Test		Appelez-nous	-
22	7240457701		Plate-door Closer		Appelez-nous	-
23	7240402702		Screw-no.10-32 X 1/4 Flat Hd		Appelez-nous	-
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 7240335502)			Immediately	$ 31.33
30	7241603703		Bracket-lower Hinge, Ref		Appelez-nous	-
37	7240337612		Trim-cabinet Corner,nickeloid ,(2)		Appelez-nous	-
38	7240327207		Bracket-upper Hinge		Appelez-nous	-
40	7241551304		Cover-upper Hinge,nickeloid		Appelez-nous	-
41	7241550801		Grommet-shelf Mtg,1.40`` Long		Appelez-nous	-
42	7240578902		Screw,hex Head ,1/4-20 X 5/8		Appelez-nous	-
43	5304499445		Roller Assy,adjustable ,front ,(2)   (Replaces: 7240335005)			Immediately	$ 31.33
45	7241500303		Screw,hex Washer Head ,8-18ab X 0.500		Appelez-nous	-
47	7241513001		Channel-shelf Mtg,side ,(2)		Appelez-nous	-
50	7241511102		Board-main Power		Appelez-nous	-
54	241532401		Channel   (Replaces: 7241532401)				$ 30.47
58	7241595402		Screw-no.10-32 X 3/4		Appelez-nous	-
66	7241513602		Damper-meat Keeper		Appelez-nous	-
72	7241554708		Grille/kickplate		Appelez-nous	-
73	7241926601		Screw,truss Head		Appelez-nous	-
81	75304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile		Appelez-nous	-
82	5304418225		Roller,compressor Base ,rear ,(2)   (Replaces: 75304418225)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin   (Replaces: 75304455655)			Immediately	$ 35.34
89	7241733902		Cover-access,w/label		Appelez-nous	-
90	7218249808		Seal-coil Cover		Appelez-nous	-
92	7241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg		Appelez-nous	-
100	241993001		Support,crisper Cover ,front ,(4)   (Replaces: 7240423701)			Immediately	$ 19.23
100	7240350802		Support,crisper Cover ,rear ,(4)		Appelez-nous	-
10A	7241719712		Cover-evap Coil,lower		Appelez-nous	-
14A	7241547901		Switch-light/lamp,frzr Door		Appelez-nous	-
21C	7218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500		Appelez-nous	-
30A	7241603704		Bracket-lower Hinge		Appelez-nous	-
NI	7241591701		Louver		Appelez-nous	-
NI	7241532501		Clip-harness		Appelez-nous	-
NI	7241550701		Grommet-shelf Mtg,.96`` Long		Appelez-nous	-
NI	7241524802		Seal,housing		Appelez-nous	-
