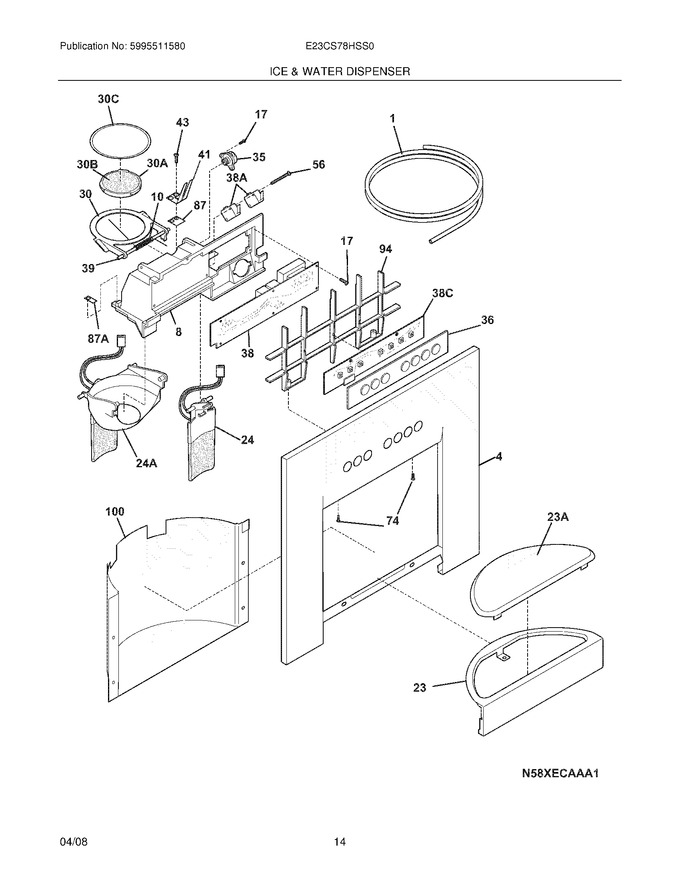

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube,water ,door   (Replaces: 7218976409)			Immediately	$ 60.25
4	7241533208		Cover-module,stainless		Appelez-nous	-
8	7241680504		Module-dispenser		Appelez-nous	-
10	7241688901		Spring-torsion		Appelez-nous	-
17	7241679801		Screw		Appelez-nous	-
23	7241531102		Drip Tray,stainless		Appelez-nous	-
24	7241685704		Actuator,stainless		Appelez-nous	-
30	7241688401		Door Assy-ice Chute		Appelez-nous	-
35	7241689301		Damper-rotary		Appelez-nous	-
36	7241533501		Button Module,stainless		Appelez-nous	-
38	241527601		Board-power   (Replaces: 7241527601)				$ 427.72
39	7241688801		Pin-hinge		Appelez-nous	-
41	7241689001		Spring-actuator		Appelez-nous	-
43	7215296301		Screw,plask H/l ,no.6 X 3/8		Appelez-nous	-
56	7241689201		Screw-micro Switch,pan Head		Appelez-nous	-
74	7241720001		Screw,no.4 Hilo ,(2)		Appelez-nous	-
87	7241688302		Bearing Plate		Appelez-nous	-
94	7241533301		Support,control Board		Appelez-nous	-
100	7241530402		Liner,dispen Housing ,stainless		Appelez-nous	-
23A	7241531601		Drip Tray Insert		Appelez-nous	-
24A	7241682304		Actuator-ice,stainless		Appelez-nous	-
30A	7241688501		Door Center		Appelez-nous	-
30B	7241688601		Insulation-door		Appelez-nous	-
30C	7241688701		Door Seal		Appelez-nous	-
87A	7241688301		Bearing Plate		Appelez-nous	-
F38A	241689106		Switch-micro,single Pole ,double Throw   (Replaces: 7241689101)			Immediately	$ 8.60
F38C	7241527501		Board-control		Appelez-nous	-
F38C	7241680001		Harness-ribbon Cable		Appelez-nous	-
NI	5303918256		Dispenser Heater Kit   (Replaces: 75303918256)				$ 474.16
NI	7241533401		Seal,foam		Appelez-nous	-
NI	7240561702		Seal-water Inlet,inlet Valve ,to Ice Maker		Appelez-nous	-
NI	7218976915		Tube-water Inlet,inlet Valve ,to Filter		Appelez-nous	-
NI	218976421		Tube-water Inlet,valve To Door   (Replaces: 7218976421)				$ 20.56
NI	7218976418		Tube-water Inlet,inlet Valve ,to Filter		Appelez-nous	-
NI	7218515403		Clip-grille		Appelez-nous	-
NI	7241510902		Harness-dispenser		Appelez-nous	-
NI	7241686201		Insulator-electrical		Appelez-nous	-
NI	7240363402		Screw-no.8-18 X 1/2,no.6 Hd Plask		Appelez-nous	-
