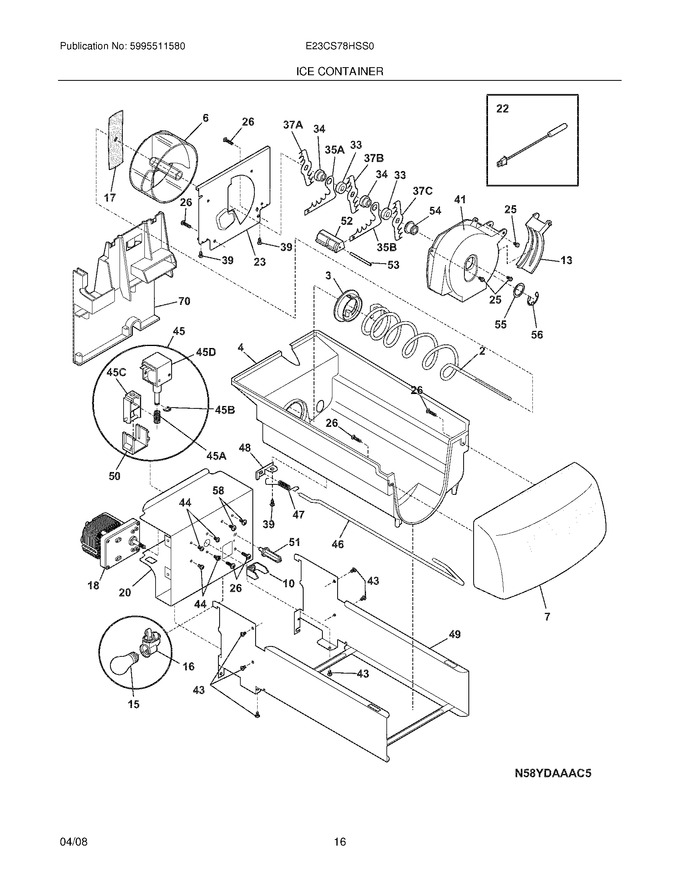

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241684701		Auger-ice   (Replaces: 7241684701)				$ 240.98
3	241685201		Cam-drive   (Replaces: 7241685201)				$ 41.81
4	241515202		Container-ice,bucket Only   (Replaces: 7241515202)				$ 102.38
6	241685101		Drum-ice Disp   (Replaces: 7241685101)				$ 51.74
7	241515301		Front-ice Container   (Replaces: 7241515301)				$ 119.58
10	7241726501		Bar-drive		Appelez-nous	-
13	7241685301		Gate		Appelez-nous	-
15	7241555401		Light Bulb		Appelez-nous	-
16	7241559801		Socket-light		Appelez-nous	-
17	241684503		Drive Blade   (Replaces: 7241684501)				$ 17.44
20	7241675502		Cover-motor		Appelez-nous	-
22	240597220		Sensor   (Replaces: 7240597203)			Immediately	$ 5.16
23	7241684001		Plate-front		Appelez-nous	-
25	7241690701		Screw,hex Washer Head ,8-32t X 0.375		Appelez-nous	-
26	7215503203		Screw,cr Pan Hd ,10-16 X 0.500		Appelez-nous	-
33	7241684801		Spacer		Appelez-nous	-
34	7241689801		Spacer		Appelez-nous	-
39	7241690501		Screw		Appelez-nous	-
41	7241685601		Housing-crusher		Appelez-nous	-
43	7215005101		Screw,hanger/rlr Mtg ,8-10 X 7/16		Appelez-nous	-
44	7241842101		Screw,8-32 X 1/4		Appelez-nous	-
46	7241684402		Control Rod		Appelez-nous	-
47	7241731801		Spring-control Rod		Appelez-nous	-
48	7241684602		Bracket-control Rod		Appelez-nous	-
49	7241676501		Rail Assy		Appelez-nous	-
50	7241675601		Guide-solenoid		Appelez-nous	-
51	7241676301		Rotation Stop		Appelez-nous	-
52	7241684901		Spacer-fixed Blades		Appelez-nous	-
53	7241690402		Pin-spiral,fixed Blades		Appelez-nous	-
54	7241685001		Nut-auger		Appelez-nous	-
55	7241690306		Washer		Appelez-nous	-
56	7241690201		E-ring		Appelez-nous	-
58	7218359202		Screw,pan Head ,8-32 X 0.250		Appelez-nous	-
70	241504601		Plate-mounting   (Replaces: 7241504601)				$ 38.32
35A	7241684301		Fixed Blade,round		Appelez-nous	-
35B	7241684201		Fixed Blade,square		Appelez-nous	-
37A	7241684101		Blade,crusher No.1		Appelez-nous	-
37B	7241684102		Blade,crusher No.2		Appelez-nous	-
37C	7241684103		Blade,crusher No.3		Appelez-nous	-
45A	7241675901		Spring-solenoid		Appelez-nous	-
45B	7241676001		E-ring-solenoid		Appelez-nous	-
45C	7241676101		Actuator-solenoid		Appelez-nous	-
F18	242221501		Motor-auger   (Replaces: 7241676201)				$ 200.51
F45	241675704		Solenoid Assy,115v   (Replaces: 7241675701)			Immediately	$ 65.71
F45D	7241675801		Solenoid,115v		Appelez-nous	-
NI	7241914702		Ice Container Assy		Appelez-nous	-
NI	7241522901		Harness-wiring,icmkr/container		Appelez-nous	-
NI	7241551602		Screw,hex Head ,8-18b X 0.875		Appelez-nous	-
NI	7241716801		Clip		Appelez-nous	-
NI	7240562101		Insulator		Appelez-nous	-
NI	7241519401		Clip,sensor		Appelez-nous	-
