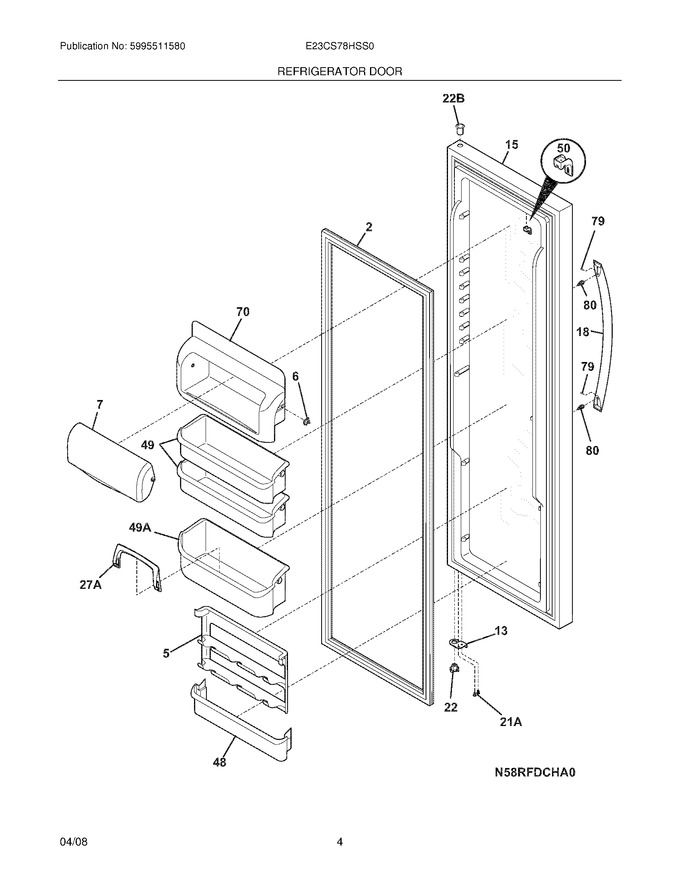

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	7241516102		Rack-can		Appelez-nous	-
6	241515901		Lug-dairy Compartment   (Replaces: 7241515901)				$ 42.47
7	241515606		Door-dairy   (Replaces: 7241515601)				$ 40.96
13	7240581905		Door Stop,black ,ref		Appelez-nous	-
15	241837220		Door-refr,stainless ,complete Assy				$ 460.17
18	7241531401		Handle-door,stainless Steel ,with Set Screw		Appelez-nous	-
22	7240328203		Bearing-hinge,black ,closer		Appelez-nous	-
48	241511701		Bin-door,pseudo ,bottom   (Replaces: 7241808209)			Immediately	$ 67.21
49	241505301		Bin-door,2-liter   (Replaces: 241808215)			Immediately	$ 76.40
50	7241508401		Cover-magnet		Appelez-nous	-
70	241515801		Compartment-dairy,removable   (Replaces: 7241515801)				$ 177.89
79	218755405		Screw-set,10-32 X 0.375   (Replaces: 7218755402)			Immediately	$ 20.56
80	7241531502		Screw-shoulder,no.10 Ab ,handle Mounting		Appelez-nous	-
21A	7240598402		Screw,10-32 X 1/2		Appelez-nous	-
22B	7240328404		Bearing-hinge,black ,upper		Appelez-nous	-
27A	240396102		Retainer,tall Bottle   (Replaces: 7240396102)				$ 19.13
49A	241505501		Bin-door,gallon   (Replaces: 241808212)			Immediately	$ 99.03
F2	241510201		Gasket-refr Door,white ,magnetic   (Replaces: 7241510201)			Immediately	$ 222.14
NI	75304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile		Appelez-nous	-
