Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 704336 Plate, Motor Appelez-nous -
2 701718 Blade, Fan Appelez-nous -
3 Y703570 Mount, Motor Appelez-nous -
4 Y700556 Clip, J Appelez-nous -
5 Y701721 Motor, Fan Appelez-nous -
6 M0282005 Nut, Hex   (Replaces: 701719) Special Order $ 7.07

7 WP90767 Screw   (Replaces: Y700502) In-Stock Immediately $ 7.04

8 WP90767 Screw   (Replaces: 715773) In-Stock Immediately $ 7.04

9 704354 Switch, Bake Cycle Appelez-nous -
10 704355 Switch, Broil Cycle Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

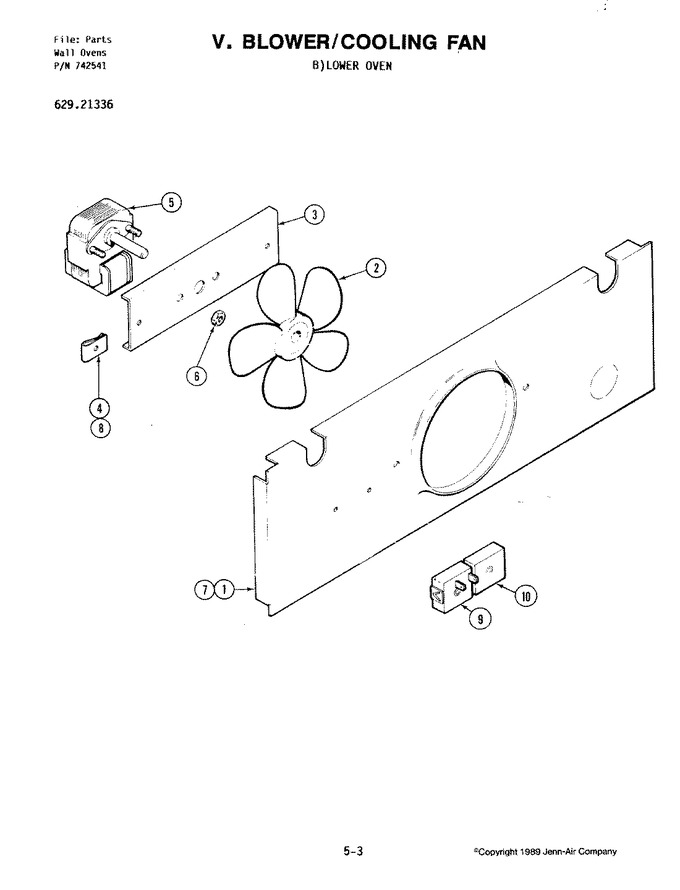

Diagram for 21336
