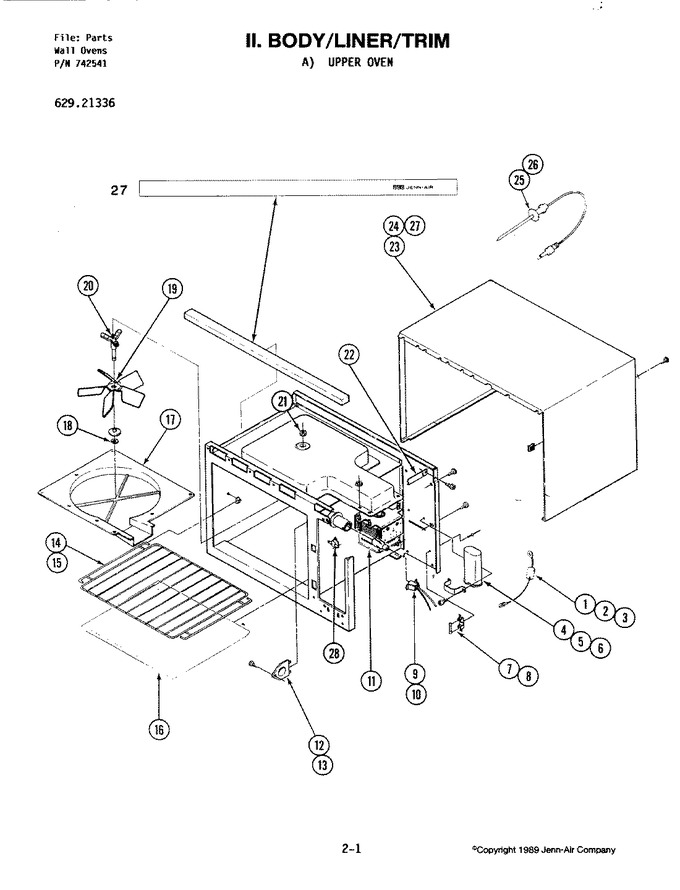

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y04010206		Diode		Appelez-nous	-
2	WP8281227		Screw   (Replaces: Y03010144)				$ 9.40
3	03050003		Nut		Appelez-nous	-
4	Y01020023		Capacitor		Appelez-nous	-
5	02030123		Bracket		Appelez-nous	-
6	04021262		Frame, Door (blk)		Appelez-nous	-
7	Y01100036		Clip, Fuse		Appelez-nous	-
8	Y01050005		Fuse 15a 125v		Appelez-nous	-
9	01100041		Socket, Lamp		Appelez-nous	-
10	Y01060024		Bulb, Light		Appelez-nous	-
11	01040004		Magnetron		Appelez-nous	-
12	Y02400007		Lens, Bulb		Appelez-nous	-
13	03010098		Screw		Appelez-nous	-
14	Y02410004		Rack, Oven		Appelez-nous	-
15	02010049		Support, Rack		Appelez-nous	-
16	Y02280024		Shelf, Glass		Appelez-nous	-
17	Y02300045		Cover, Stirrer		Appelez-nous	-
18	Y03110055		Clip, Stirrer		Appelez-nous	-
19	04021190		Blade, Bushing Assembly		Appelez-nous	-
20	02360045		Shaft, Stirrer		Appelez-nous	-
21	03050007		Nut, Shaft Stirrer		Appelez-nous	-
22	02020020		Brace, Upper Right Support		Appelez-nous	-
23	02140070		Cabinet (blk)		Appelez-nous	-
24	03110046		Clip, Cabinet (lt)		Appelez-nous	-
25	01220006		Probe, Temp.		Appelez-nous	-
26	01170008		Jack, Probe		Appelez-nous	-
27	02100177		Trim, Top (logo)		Appelez-nous	-
28	Y01180008		Switch, Temperature Limit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
