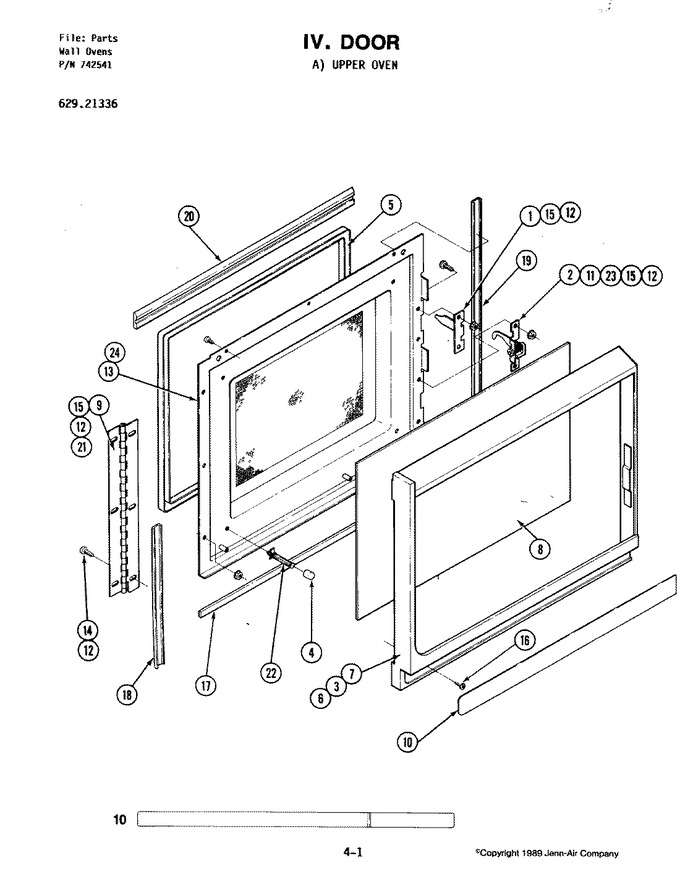

10 - Door (upper)


11 - Internal Controls (lower)


12 - Internal Controls (upper)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y02030117		Activator, Monitor		Appelez-nous	-
2	Y02030116		Bracket, Door Latch		Appelez-nous	-
3	02010047		Bracket, Door Trim		Appelez-nous	-
4	02230011		Bumper		Appelez-nous	-
5	Y02100166		Choke, Filler (blk)		Appelez-nous	-
6	02120151		Extrusion, Handle (blk)		Appelez-nous	-
7	04021262		Frame, Door (blk)		Appelez-nous	-
8	Y02220096		Glass, Door		Appelez-nous	-
9	Y02200017		Hinge, Door		Appelez-nous	-
10	790119		Isrt-dr Frame, No Logo		Appelez-nous	-
11	02190056		Latch, Door		Appelez-nous	-
12	Y02400007		Lens, Bulb		Appelez-nous	-
13	04021377		Panel, Inner Door (blk)		Appelez-nous	-
14	Y03010121		Screw		Appelez-nous	-
15	Y03020071		Screw & Washer (hi Lo)		Appelez-nous	-
16	Y03010118		Screw		Appelez-nous	-
17	02120114		Seal, Bottom		Appelez-nous	-
18	Y02120121		Seal, Hinge Side		Appelez-nous	-
19	Y02120122		Seal, Latch Side		Appelez-nous	-
20	02120153		Seal, Top		Appelez-nous	-
21	Y03120064		Shim		Appelez-nous	-
22	Y03120069		Spacer, Door Window		Appelez-nous	-
23	Y03180023		Spring, Door Latch		Appelez-nous	-
23	Y05080027K		+ Dble Tape 36``		Appelez-nous	-
24	Y02220073		Window, Polyester		Appelez-nous	-
