Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 02030128 Bracket, Control Panel-upper Appelez-nous -
2 02030137 Bracket, Control Panel-lower Appelez-nous -
3 01210063 Board, Control Appelez-nous -
4 02060256 Frame, Control Panel Appelez-nous -
5 790119 Isrt-dr Frame, No Logo Appelez-nous -
6 02030011 Bracket Latch Appelez-nous -
7 Y03010147 Screw (top) Appelez-nous -
8 03020041 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

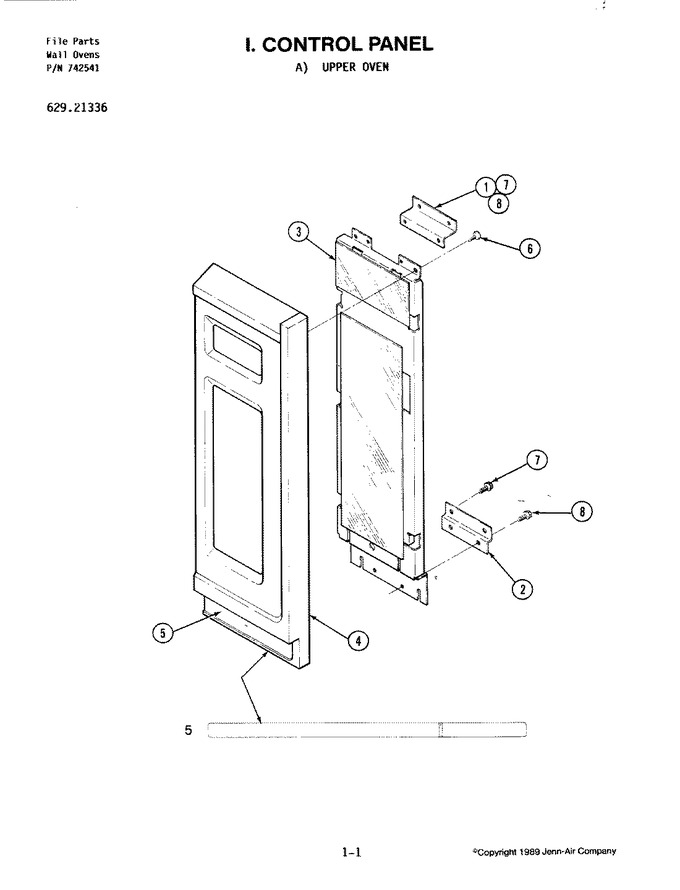

Diagram for 21336
