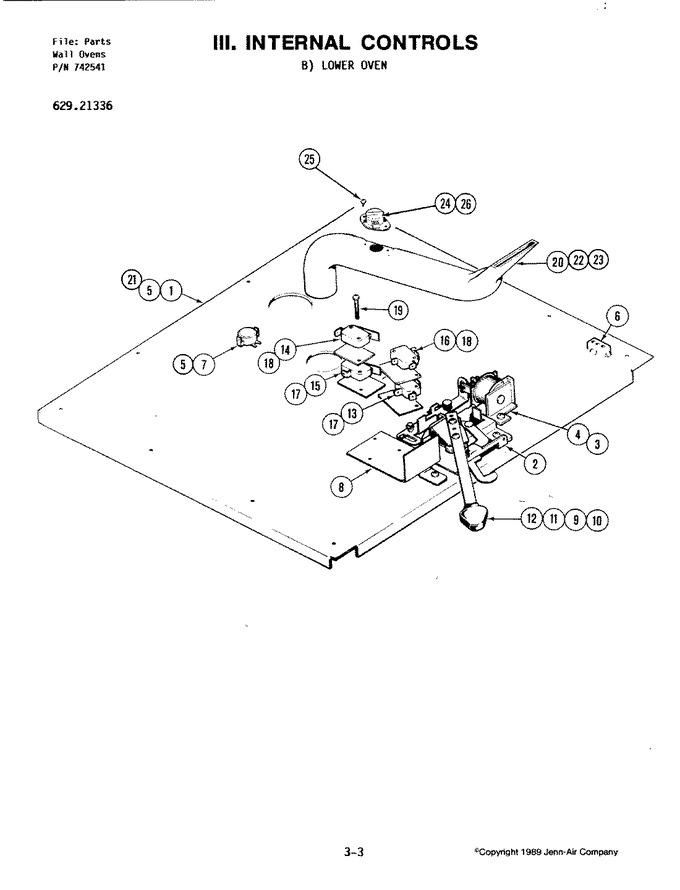

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704155 | Panel-top |
|
- | |||||
| 2 | Y703357 | Latch Assy. |
|
- | |||||
| 3 | Y701686 | Pin, Cotter |
|
- | |||||
| 4 | Y702526 | Solenoid |
|
- | |||||
| 4 | 703767 | Wire, Gray |
|
- | |||||
| 5 | WP12990527 | Screw (Replaces: Y708955) |
|
Immediately | $ 7.15 | ||||
| 6 | 703517 | Connector, Harness |
|
- | |||||
| 7 | 701687 | Thermostat |
|
- | |||||
| 8 | 701706 | Shield, Switch |
|
- | |||||
| 9 | Y701690 | Lever, Latch |
|
- | |||||
| 10 | 707407 | Screw |
|
$ 6.42 | |||||
| 11 | 701671 | Spring, Knob |
|
- | |||||
| 12 | 701670 | Knob, Lever |
|
- | |||||
| 13 | Y702360 | Switch, Solenoid |
|
- | |||||
| 14 | 702806 | Switch, Door |
|
- | |||||
| 15 | 702805 | Switch, Door |
|
- | |||||
| 16 | Y703732 | Switch, Latch |
|
- | |||||
| 17 | Y702350 | Insulator |
|
- | |||||
| 18 | 703264 | Insulator |
|
- | |||||
| 19 | 702807 | Screw |
|
- | |||||
| 20 | 704679 | Tube, Vent |
|
- | |||||
| 21 | WP71001171 | Screw, Ground (Replaces: Y703817) |
|
$ 6.26 | |||||
| 22 | 701680 | Bracket, Vent Tube |
|
- | |||||
| 23 | WP90767 | Screw (Replaces: 715773) |
|
Immediately | $ 7.04 | ||||
| 24 | Y702750 | Limit, Fan |
|
- | |||||
| 25 | WP59002061 | Screw (Replaces: Y707172) |
|
$ 6.98 | |||||
| 26 | 704625 | Wire, Brown |
|
- |
