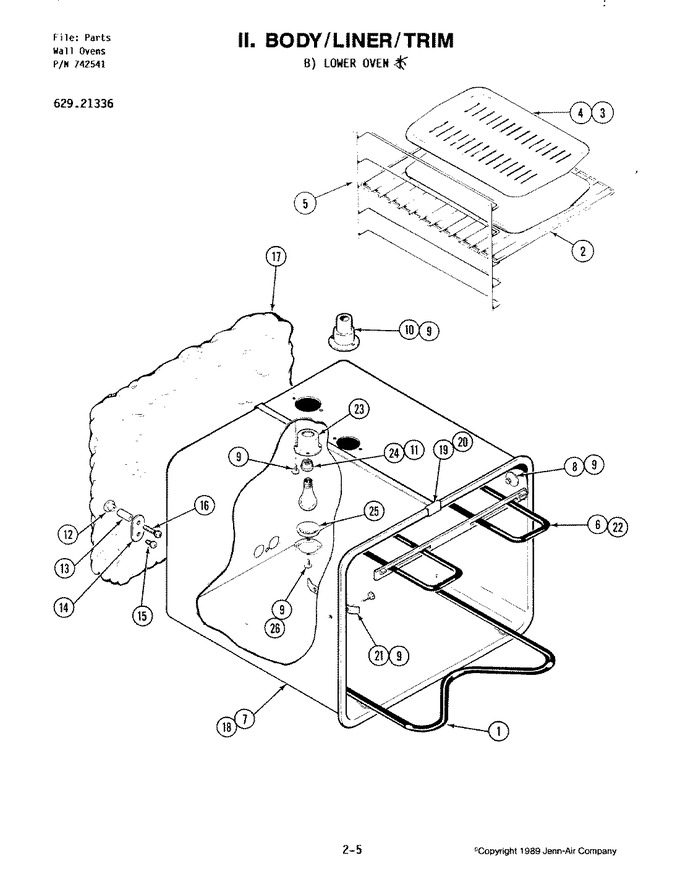

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPY04100020		Element, Bake 240v   (Replaces: Y701724)			Immediately	$ 136.96
2	Y701725		Rack, Oven		Appelez-nous	-
3	4396923		Pan, Broil   (Replaces: 703164)			Immediately	$ 52.04
4	4396923		Insert, Broil Pan   (Replaces: 703165)			Immediately	$ 52.04
5	Y701728		Support, Rack		Appelez-nous	-
6	WPY04100016		Element, Broil   (Replaces: Y701729)				$ 137.21
7	Y712376		Liner, Oven		Appelez-nous	-
8	712088		Cover, Meat Probe		Appelez-nous	-
8	703007		Standoff		Appelez-nous	-
9	WP1163283		Screw   (Replaces: Y703741)				$ 6.47
10	701738		Tube, Vent		Appelez-nous	-
11	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)			Immediately	$ 16.80
12	715294		Nut, Tee		Appelez-nous	-
13	701741		Spacer, Oven		Appelez-nous	-
14	701742		Plate, Grounding		Appelez-nous	-
15	WP71001171		Screw   (Replaces: Y707745)				$ 6.26
16	701744		Screw		Appelez-nous	-
17	701703		Insulation, Rear		Appelez-nous	-
18	701702		Insulation, Wrap		Appelez-nous	-
19	Y702618		Clip, Oven		Appelez-nous	-
20	WP210720		Rivet   (Replaces: 701662)				$ 12.14
21	Y701541		Clip, Bulb		Appelez-nous	-
22	WP179051		Screw   (Replaces: 708764)			Immediately	$ 7.16
23	704142		Receptacle, Holder		Appelez-nous	-
24	Y704145		Receptacle, Snap-in		Appelez-nous	-
25	Y704143		Lens, Light		Appelez-nous	-
26	Y704144		Retainer, Lens		Appelez-nous	-
