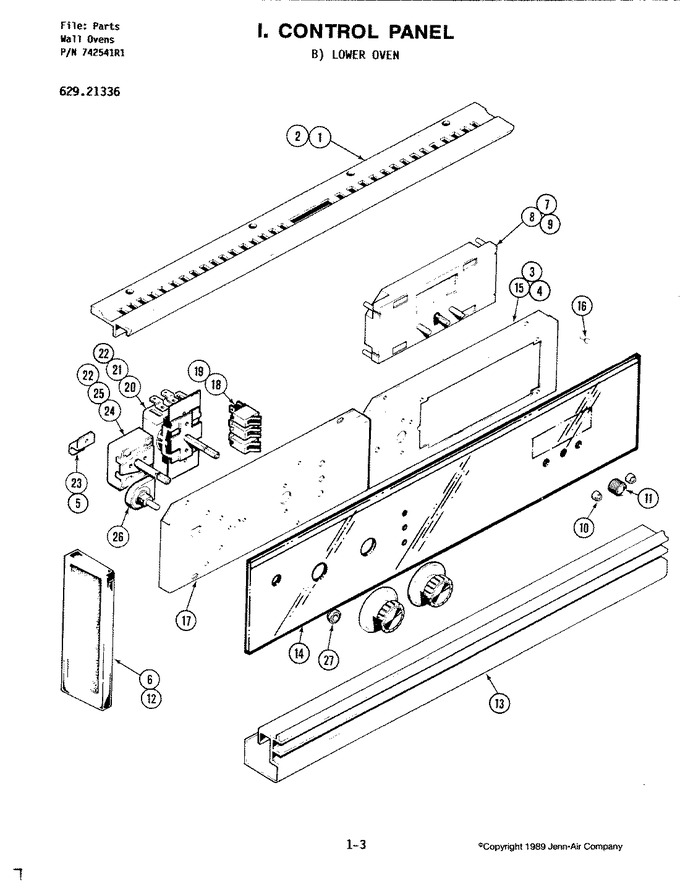

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704256 | Extrusion, Top |
|
- | |||||
| 2 | 712066 | Screw |
|
- | |||||
| 3 | 702286 | Plug, Hole |
|
- | |||||
| 4 | Y700630 | Lens, Indicator Lights |
|
$ 4.18 | |||||
| 5 | WP12990527 | Screw (Replaces: Y708955) |
|
Immediately | $ 7.15 | ||||
| 6 | 704257 | End Cap (lt-blk) |
|
- | |||||
| 7 | 703676 | Bracket, Timer |
|
- | |||||
| 8 | Y703708 | Clock |
|
- | |||||
| 9 | 703679 | Palnut |
|
- | |||||
| 10 | WP7711P492-60 | Knob, Clock (sm/blk) (Replaces: Y704239) | 1 |
|
$ 12.13 | ||||
| 11 | WP7711P492-60 | Knob, Clock (blk) (Replaces: Y703910) |
|
$ 12.13 | |||||
| 12 | 704258 | End Cap (rt-blk) |
|
- | |||||
| 13 | 704255 | Extrusion, Bottom (blk) |
|
- | |||||
| 14 | 704860 | Glass, Control Panel |
|
- | |||||
| 15 | 705336 | Panel, Control (rt) |
|
- | |||||
| 16 | 705331 | Pad, Spacer |
|
- | |||||
| 17 | 705337 | Panel, Control (lt) |
|
- | |||||
| 18 | Y702394 | Light, Indicator 240v |
|
- | |||||
| 19 | Y702393 | Light, Indicator-120v |
|
- | |||||
| 20 | 703080 | Thermostat-upper |
|
- | |||||
| 21 | Y704840 | Knob, Thermostat |
|
$ 21.24 | |||||
| 22 | 71002058 | Screw (Replaces: Y702124) |
|
$ 5.82 | |||||
| 23 | 701609 | Angle, Attachment |
|
- | |||||
| 24 | 703078 | Switch, Selector (upper) |
|
- | |||||
| 25 | WPY704841 | Knob, Selector Switch (Replaces: Y704841) |
|
$ 40.37 | |||||
| 26 | DE81-08481A | Switch, Push (Replaces: 701621) |
|
$ 606.80 | |||||
| 27 | 703089 | Wire, Tan |
|
- | |||||
| 27 | 702746 | Tie, Mount Cable |
|
- | |||||
| 27 | 703738 | Harness, Wire |
|
- | |||||
| 27 | DE81-04412A | Wire, Pink (Replaces: 703090) |
|
$ 327.97 | |||||
| 27 | DE81-09159A | Wire, Wire (Replaces: 703370) |
|
$ 313.88 | |||||
| 27 | 704903 | Harness, Wire |
|
- | |||||
| 27 | 704625 | Wire, Brown |
|
- | |||||
| 27 | 704323 | Bezel, Switch |
|
- | |||||
| 27 | 703290 | Wire, Resistor |
|
- |
