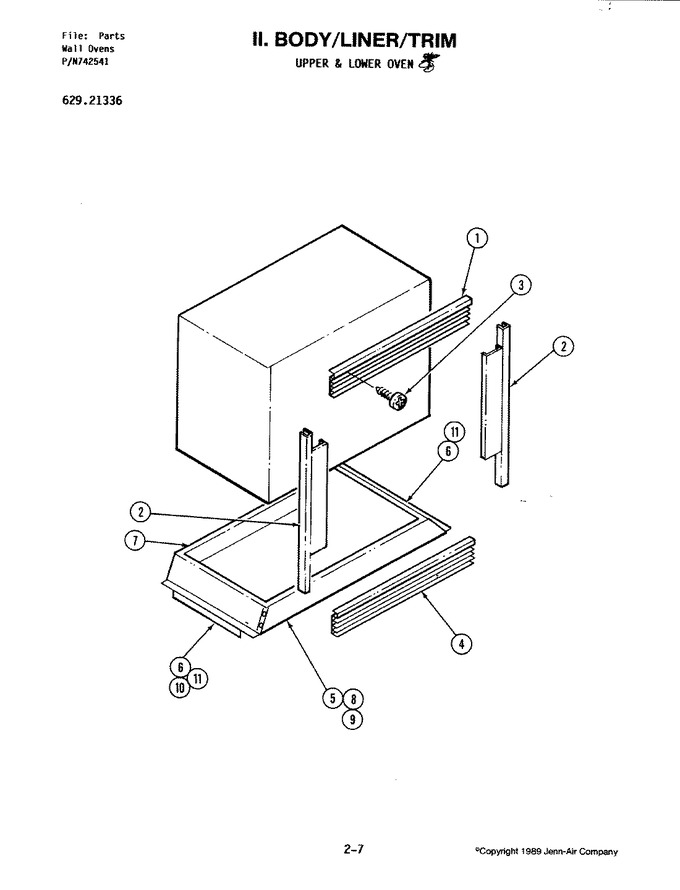

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704676 | Extrusion, Top/bottom |
|
- | |||||
| 2 | 704395 | Extrusion, Side |
|
- | |||||
| 3 | 703534 | Screw |
|
- | |||||
| 4 | 704397 | Extrusion, Bottom |
|
- | |||||
| 5 | 704343 | Support, Front |
|
- | |||||
| 6 | 704339 | Support, Bracket |
|
- | |||||
| 7 | 704344 | Bracket, Stop |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: Y700502) |
|
Immediately | $ 7.04 | ||||
| 9 | 704342 | Front, Stop |
|
- | |||||
| 10 | WP12990527 | Screw (Replaces: Y708955) |
|
Immediately | $ 7.15 | ||||
| 11 | 701171 | Screw |
|
- | |||||
| 11 | 715610 | Washer (blk) |
|
- | |||||
| 11 | 715485 | Screw |
|
- | |||||
| 11 | 704982 | Rail, Support |
|
- |
