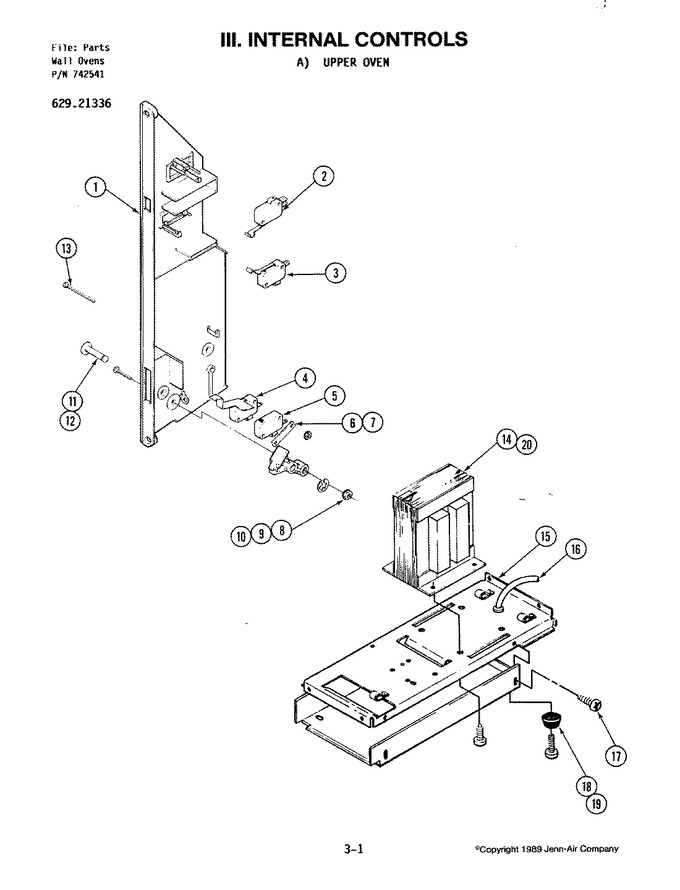

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y02030133 | Bracket, Interlock |
|
- | |||||
| 2 | Y01140038 | Switch, Secondary Interlock |
|
- | |||||
| 3 | Y01140030 | Switch, Monitor Interlock |
|
- | |||||
| 4 | Y01140042 | Switch, Primary Interlock |
|
- | |||||
| 5 | Y01140043 | Switch, Logic Interlock |
|
- | |||||
| 6 | Y01100043 | Insulator, Switch |
|
- | |||||
| 7 | Y03050001 | Nut |
|
- | |||||
| 8 | 03050003 | Nut |
|
- | |||||
| 9 | 03110040 | Clip, Retainer |
|
- | |||||
| 10 | 02190049 | Latch, Door Interlock |
|
- | |||||
| 11 | Y03070031 | Pin, Lever & Pivot Latch |
|
- | |||||
| 12 | 03010114 | Screw |
|
- | |||||
| 13 | 03010131 | Screw |
|
- | |||||
| 14 | 01130028 | Transformer, H.v. |
|
- | |||||
| 15 | 02040053 | Plate, Component Mounting |
|
- | |||||
| 16 | 01080050 | Cord, Power (blk) |
|
- | |||||
| 17 | 03020092 | Screw |
|
- | |||||
| 18 | Y02230008 | Foot, Base |
|
- | |||||
| 19 | W11233072 | Screw (Replaces: Y03020068) |
|
Immediately | $ 12.62 | ||||
| 20 | 03010094 | Screw |
|
- |
