SELECT A DIAGRAM

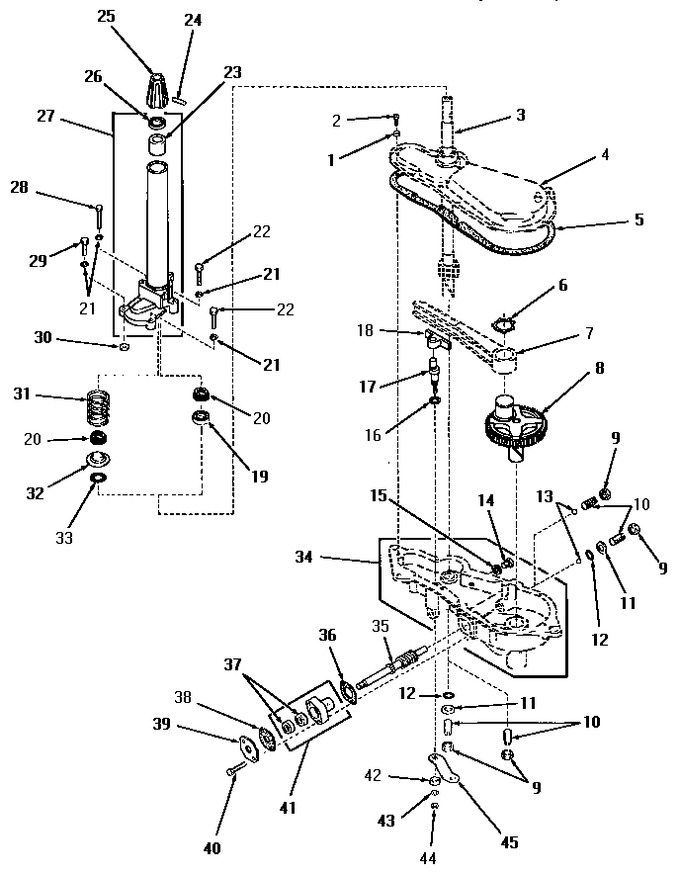

01 - A10040 Transmission Assy


02 - A10054 Wash Pump Assy


03 - Agitator And Transmission Assy


04 - Cabinet


05 - Cabinet Top And Loading Doors


06 - Chassis


07 - Control Housing And Controls


08 - Motor And Spin Pump Assy


09 - Power Cord, Inlet Hose And Clothes Tongs


10 - Spin Tub And Motor


11 - Wash Motor


12 - Wash Pump, Control Rods And Bracket


13 - Wash Tub


14 - Wire Harness, Wire And Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Q6623		Washer		Appelez-nous	-
2	10307		Phillips Head Screw		Appelez-nous	-
3	Y00000000		See Note Drive Shaft -- (order Complete Transmission)		Appelez-nous	-
4	Y00000000		See Note Transmission Cover -- (order Complete Transmission)		Appelez-nous	-
5	10308		Gasket		Appelez-nous	-
6	10309		Retainer Ring		Appelez-nous	-
7	Y00000000		See Note Rack -- (order Complete Transmission)		Appelez-nous	-
8	10312		Worm Gear		Appelez-nous	-
9	10313		Gasket, Door		Appelez-nous	-
10	10315		Adjustment Screw				$ 2.40
11	10471		Washer			Immediately	$ 39.32
12	10470		O-ring			Immediately	$ 38.75
13	10314		Steel Ball		Appelez-nous	-
14	10343		Drain Plug		Appelez-nous	-
15	10341		Fiber Washer				$ 437.21
16	10325		Fiber Washer			Immediately	$ 47.45
17	10324		Eccentric		Appelez-nous	-
18	10311		Thrust Block		Appelez-nous	-
19	Y10543		Xreplace		Appelez-nous	-
20	10302		Watershed Washer		Appelez-nous	-
21	10300		Lockwasher		Appelez-nous	-
22	10297		Cap Screw		Appelez-nous	-
23	10296		Sleeve Bearing		Appelez-nous	-
24	20243		Pin,taper		Appelez-nous	-
25	20056		Block, Drive				$ 3.68
26	10295		Water Seal		Appelez-nous	-
27	A10339		Agitator Post Assembly		Appelez-nous	-
28	10298		Cap Screw		Appelez-nous	-
29	10299		Cap Screw		Appelez-nous	-
30	10203		Lockwasher,sealing		Appelez-nous	-
31	10301		Spring		Appelez-nous	-
32	10303		O-ring Cover		Appelez-nous	-
33	10304		O-ring		Appelez-nous	-
34	Y00000000		See Note Transmission Case Assembly -- (order Complete Transmission)		Appelez-nous	-
35	10322		Worm		Appelez-nous	-
36	10323		Gasket		Appelez-nous	-
37	10329		Seal		Appelez-nous	-
38	10333		Gasket		Appelez-nous	-
39	10330		Plate		Appelez-nous	-
40	10331		Cap Screw		Appelez-nous	-
41	A10326		Bearing Assembly		Appelez-nous	-
42	10319		Spacer				$ 76.75
43	Y10320		Lockwasher		Appelez-nous	-
44	10321		Locknut		Appelez-nous	-
45	10318		Adjustment Lever				$ 76.75
