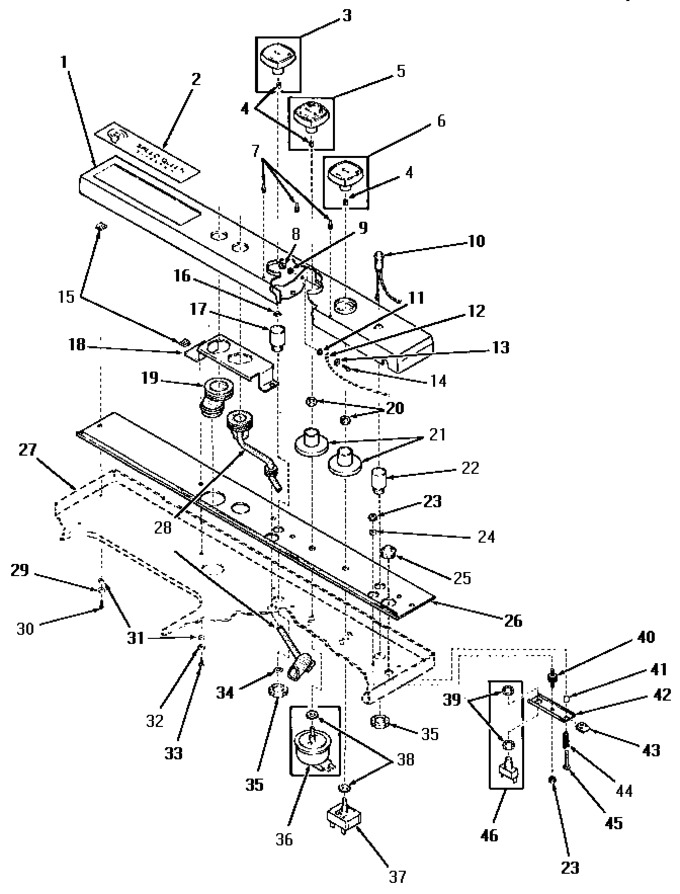

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A10155W | Control Housing, Whit |
|
- | |||||
| 1 | A10155A | Control Housing, Avoc |
|
- | |||||
| 1 | A10155C | Control Housing, Copp |
|
- | |||||
| 1 | A10155G | Control Housing, Harv |
|
- | |||||
| 2 | 10161AB | Nameplate (Replaces: 10161) |
|
$ 68.06 | |||||
| 3 | A10167 | Pump Control Knob |
|
- | |||||
| 4 | 23392 | Clip For 26816 Knob |
|
- | |||||
| 5 | A10162 | Timer Control Knob |
|
- | |||||
| 6 | A10165 | Spin Control Knob |
|
- | |||||
| 7 | 10160 | Rivet |
|
- | |||||
| 8 | 3673 | Sub 4509 |
|
- | |||||
| 9 | Y3815 | Lockwasher |
|
- | |||||
| 10 | 10159 | Indicator Light |
|
- | |||||
| 11 | Q6623 | Washer |
|
- | |||||
| 12 | Y00000000 | See Note Ground Wire, Green |
|
- | |||||
| 13 | Y3815 | Lockwasher |
|
- | |||||
| 14 | Y3814 | Round Head Screw |
|
- | |||||
| 15 | Y10009 | Nut,speed Xreplace |
|
- | |||||
| 16 | 10150 | Retainer Ring |
|
$ 6.42 | |||||
| 17 | 10148 | Collar |
|
- | |||||
| 18 | 10132 | Inlet Tube Bracket |
|
- | |||||
| 19 | 10131 | Tube,inlet Xreplace |
|
- | |||||
| 20 | 10338 | Nut,hex 3/8-24 |
|
$ 29.92 | |||||
| 21 | 10151 | Shield |
|
Immediately | $ 46.33 | ||||
| 22 | 10154 | Collar |
|
- | |||||
| 23 | 70054 | Nut,hex 10-32 Keps |
|
- | |||||
| 24 | 10142 | Sealing Lockwasher |
|
- | |||||
| 25 | 10147 | Bellows |
|
- | |||||
| 26 | 10130 | Control Housing Gaske |
|
- | |||||
| 27 | Y00000000 | See Note Cabinet Top -- (see Page 2) |
|
- | |||||
| 28 | A10133 | Rinse Inlet Hose |
|
- | |||||
| 29 | COMM PART | Washer (Replaces: 20103) |
|
- | |||||
| 30 | 2426 | Round Head Screw |
|
- | |||||
| 31 | 10393 | Vinyl Washer |
|
Immediately | $ 22.97 | ||||
| 32 | COMM PART | Washer (Replaces: 20103) |
|
- | |||||
| 33 | 2426 | Round Head Screw |
|
- | |||||
| 34 | 10150 | Retainer Ring |
|
$ 6.42 | |||||
| 35 | 10149 | Locknut |
|
$ 6.42 | |||||
| 36 | 10152 | Timer Xreplace |
|
- | |||||
| 37 | 10153 | Switch |
|
- | |||||
| 38 | 91176 | Lockwasher,3/8 Intshkp |
|
$ 1.44 | |||||
| 39 | Sub. To D513506 | Nut,hex 15/32-32 (Replaces: 52947) |
|
- | |||||
| 40 | 10141 | Rubber Mount |
|
- | |||||
| 41 | 0101487 | Bumper (Replaces: 10146) |
|
Immediately | $ 69.18 | ||||
| 42 | 10140 | Switch Bracket |
|
- | |||||
| 43 | 10145 | Retainer Nut |
|
- | |||||
| 44 | 10143 | Spring |
|
- | |||||
| 45 | 10144 | Adjusting Screw |
|
- | |||||
| 46 | A53768 | Door Safety Switch |
|
- | |||||
| NOTE: | Note: Order Complete Wire Harness, 10113 Or Order Wire By The Foot And Gauge. |
|
- |
