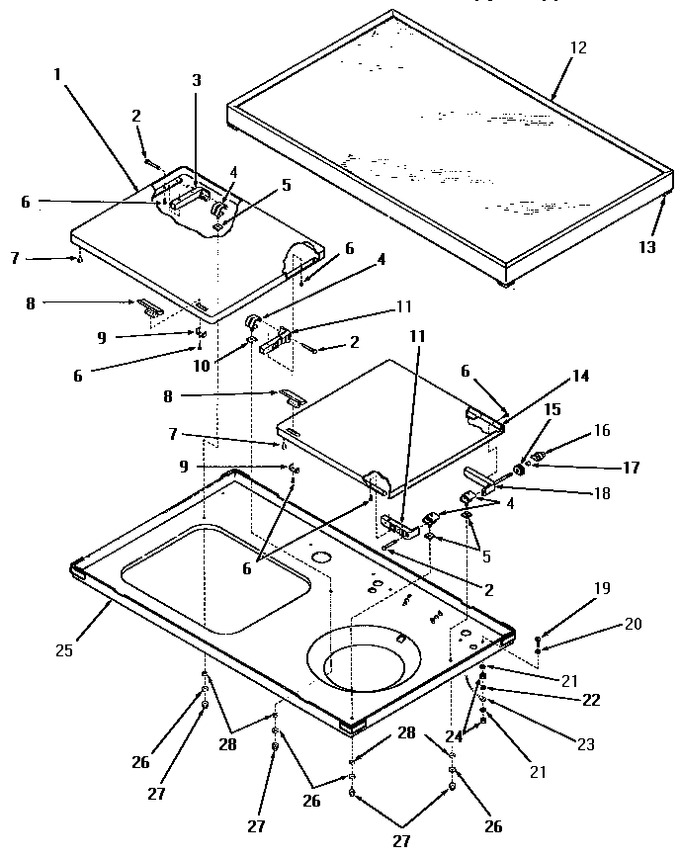

04 - Cabinet


05 - Cabinet Top And Loading Doors


06 - Chassis


07 - Control Housing And Controls


08 - Motor And Spin Pump Assy


09 - Power Cord, Inlet Hose And Clothes Tongs


10 - Spin Tub And Motor


11 - Wash Motor


12 - Wash Pump, Control Rods And Bracket


13 - Wash Tub


14 - Wire Harness, Wire And Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10116C		Wash Tub Loading Door, Coppert		Appelez-nous	-
1	10116W		Wash Tub Loading Door, White		Appelez-nous	-
1	10116A		Wash Tub Loading Door, Avocado		Appelez-nous	-
1	10116G		Wash Tub Loading Door, Harvest		Appelez-nous	-
2	20174		Rivet,.182 X 1.312 Fla		Appelez-nous	-
3	10119		Hinge Block		Appelez-nous	-
4	10125		Hinge Bracket		Appelez-nous	-
5	10126		Gasket		Appelez-nous	-
6	22145		Screw,6z-20x 3/8 Ss Rd		Appelez-nous	-
7	21176		Bumper		Appelez-nous	-
8	10123		Door Handle		Appelez-nous	-
9	10124		Spacer		Appelez-nous	-
10	10126		Gasket		Appelez-nous	-
11	10118		Hinge Block		Appelez-nous	-
12	A10259W		Hand-e-top, White		Appelez-nous	-
12	A10259A		Hand-e-top, Avocado		Appelez-nous	-
12	A10259G		Hand-e-top, Harvest Gold		Appelez-nous	-
12	A10259C		Hand-e-top, Coppertone		Appelez-nous	-
13	10376		Vinyl Cushion			Immediately	$ 12.64
14	10120W		Spin Tub Loading Door, White		Appelez-nous	-
14	10120A		Spin Tub Loading Door, Avocado		Appelez-nous	-
14	10120C		Spin Tub Loading Door, Coppert		Appelez-nous	-
14	10120G		Spin Tub Loading Door, Harvest		Appelez-nous	-
15	10137		Grommet		Appelez-nous	-
16	10138		Cam		Appelez-nous	-
17	10139		Clip				$ 15.48
18	10121		Hinge Block And Shaft				$ 47.99
19	Y3814		Round Head Screw		Appelez-nous	-
20	21643		Washer,13/64idx3/8odx1		Appelez-nous	-
21	Y3815		Lockwasher		Appelez-nous	-
22	Q6623		Washer		Appelez-nous	-
23	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
24	3673		Sub 4509		Appelez-nous	-
25	A10374A		Cabinet Top, Avocado		Appelez-nous	-
25	A10374W		Cabinet Top, White		Appelez-nous	-
25	A10374G		Cabinet Top, Harvest Gold		Appelez-nous	-
25	A10374C		Cabinet Top, Coppertone		Appelez-nous	-
26	COMM PART		Washer   (Replaces: 20103)		Appelez-nous	-
27	10129		Xreplace				$ 103.51
28	2928		Sub 11138		Appelez-nous	-
