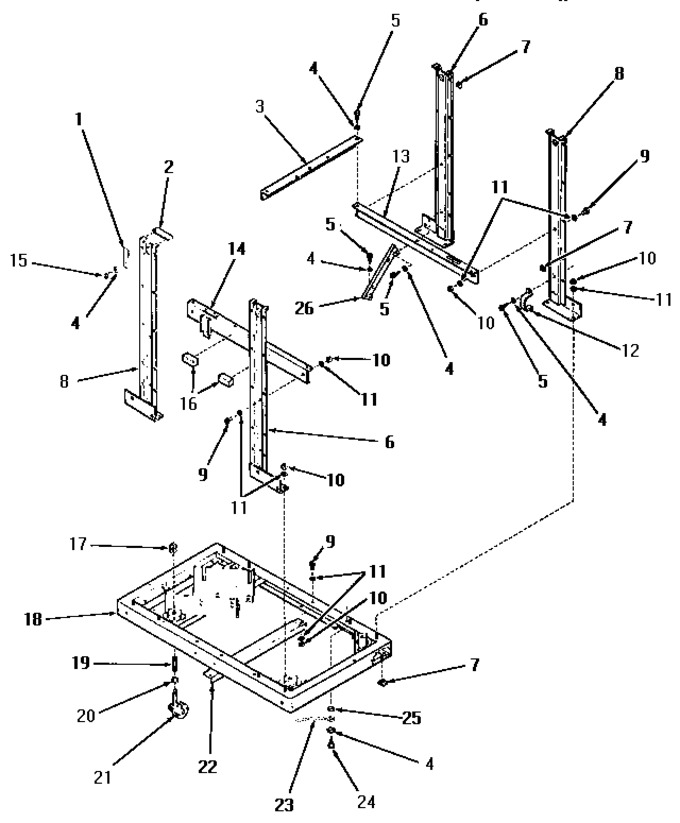

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10208		Hold-down Bracket		Appelez-nous	-
1	10395		Hold-down Bracket			Immediately	$ 35.89
2	10029		Temp Control				$ 6.99
3	10026		Side Channel		Appelez-nous	-
4	Y3815		Lockwasher		Appelez-nous	-
5	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
6	A10014		Leg		Appelez-nous	-
7	Y10009		Nut,speed Xreplace		Appelez-nous	-
8	A10011		Leg		Appelez-nous	-
9	Y2422		Cap Screw		Appelez-nous	-
10	WPW10139757		Nut   (Replaces: 20275)				$ 7.16
11	2431		Lockwasher		Appelez-nous	-
12	Y10016		Capacitor Mounting Strap		Appelez-nous	-
13	Y10017		Cross Channel, Rear		Appelez-nous	-
14	A10020		Cross Channel, Front		Appelez-nous	-
15	WP3390631		Hex Head Screw   (Replaces: 51780)				$ 7.04
16	23257		Pad,bumper		Appelez-nous	-
17	4196		Code J		Appelez-nous	-
18	A1000		Frame		Appelez-nous	-
19	3921		Spring		Appelez-nous	-
20	3919		Bushing			Immediately	$ 22.71
21	3920		Caster		Appelez-nous	-
22	Y10010		Drain Tub Mounting Bracket		Appelez-nous	-
23	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
24	51924		Screw,10-24 X 1/2 Hex		Appelez-nous	-
25	Q6623		Washer		Appelez-nous	-
26	10027		Gusset				$ 6.99
