01 - A10040 Transmission Assy


02 - A10054 Wash Pump Assy


03 - Agitator And Transmission Assy


04 - Cabinet


05 - Cabinet Top And Loading Doors


06 - Chassis


07 - Control Housing And Controls


08 - Motor And Spin Pump Assy


09 - Power Cord, Inlet Hose And Clothes Tongs


10 - Spin Tub And Motor


11 - Wash Motor


12 - Wash Pump, Control Rods And Bracket


13 - Wash Tub


14 - Wire Harness, Wire And Terminals

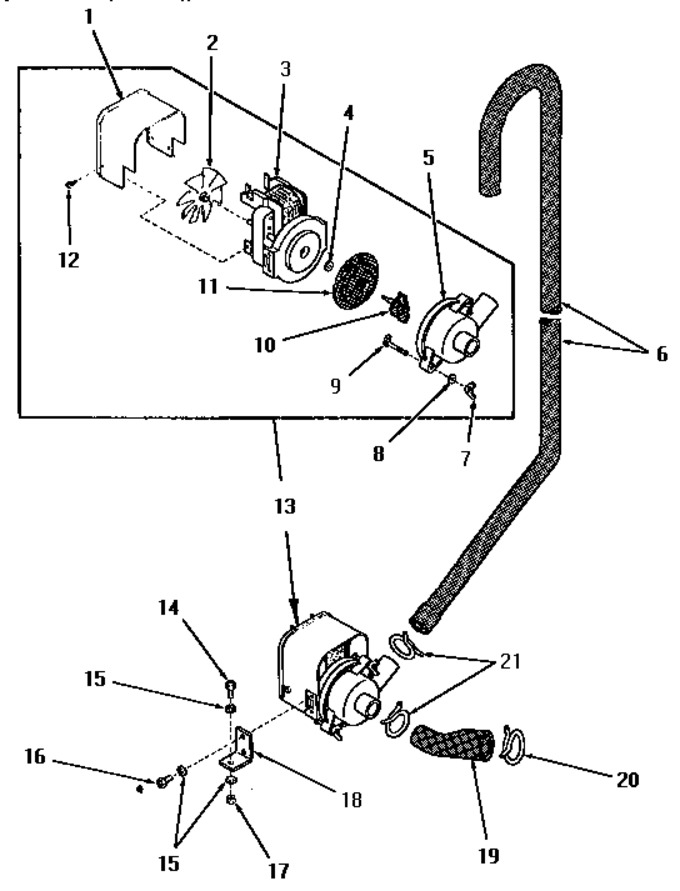

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y10270		Motor Housing		Appelez-nous	-
2	10272		Fan		Appelez-nous	-
3	10273		Motor		Appelez-nous	-
4	10274		Flinger		Appelez-nous	-
5	10277		Pump Cover		Appelez-nous	-
6	10181		Hose, Drain		Appelez-nous	-
7	10280		Nut,wing Xreplace		Appelez-nous	-
8	10279		Washer		Appelez-nous	-
9	10278		Bolt,j Xreplace		Appelez-nous	-
10	10276		Impeller 625-0034 Xreplace		Appelez-nous	-
11	10275		Gasket & Seal		Appelez-nous	-
12	10271		Screw		Appelez-nous	-
13	A10110		Motor And Spin Pump Assembly		Appelez-nous	-
14	Y2422		Cap Screw		Appelez-nous	-
15	2431		Lockwasher		Appelez-nous	-
16	10294		Pan Head Screw		Appelez-nous	-
16	20747		Screw,1/4-20 X 1/2 Rd		Appelez-nous	-
17	WPW10139757		Nut   (Replaces: 20275)				$ 7.16
18	10111		Mounting Bracket				$ 48.02
19	10179		Drain Tub-to-pump Hose		Appelez-nous	-
20	10180		Clamp		Appelez-nous	-
21	21372		Hose Clamp		Appelez-nous	-
