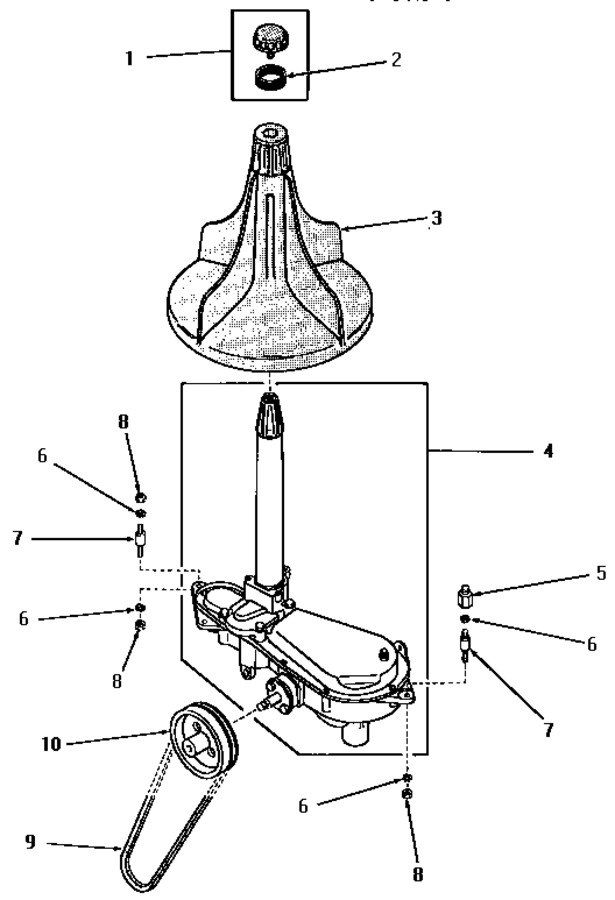

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A24811		Hold-down Cap, Gray		Appelez-nous	-
2	20136		Ring		Appelez-nous	-
3	A10076		Agitator		Appelez-nous	-
4	A10040		Transmission Assembly		Appelez-nous	-
5	10043		Nut Xreplace				$ 5.70
6	2431		Lockwasher		Appelez-nous	-
7	10042		Stud,mounting Xreplace		Appelez-nous	-
8	WPW10139757		Nut   (Replaces: 20275)				$ 7.16
9	10211		Belt				$ 5.77
10	10332		Transmission Pulley		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
