01 - A10040 Transmission Assy


02 - A10054 Wash Pump Assy


03 - Agitator And Transmission Assy


04 - Cabinet


05 - Cabinet Top And Loading Doors


06 - Chassis


07 - Control Housing And Controls


08 - Motor And Spin Pump Assy


09 - Power Cord, Inlet Hose And Clothes Tongs


10 - Spin Tub And Motor


11 - Wash Motor


12 - Wash Pump, Control Rods And Bracket


13 - Wash Tub


14 - Wire Harness, Wire And Terminals

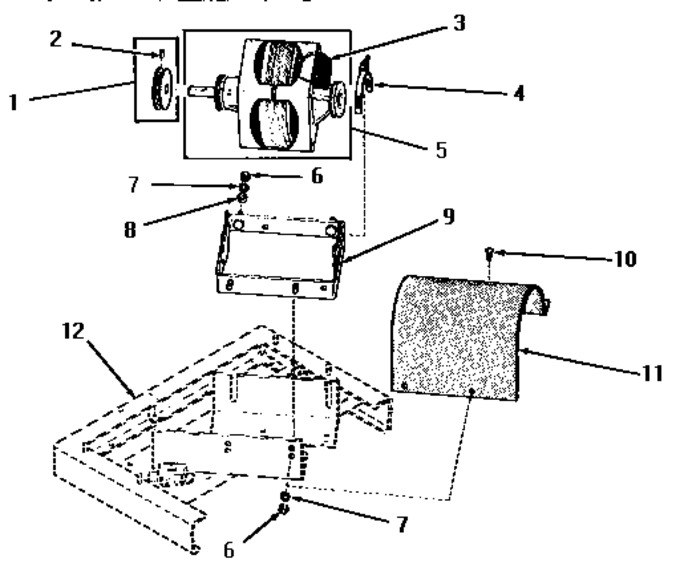

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y10037		Pulley Xreplace		Appelez-nous	-
2	2771		Setscrew		Appelez-nous	-
3	10228		Motor Switch, Emerson		Appelez-nous	-
4	A91922		Motor Clip		Appelez-nous	-
5	10036		Motor		Appelez-nous	-
6	COMM PART		Nut,hex 5/16-18   (Replaces: 70142)		Appelez-nous	-
7	Y2834		Lockwasher		Appelez-nous	-
8	Q6066		Washer,21/64idx3/4odx1		Appelez-nous	-
9	A10221		Motor Mount		Appelez-nous	-
10	10039		Retainer Clip		Appelez-nous	-
11	10034		Shield Xreplace				$ 52.99
12	Y00000000		See Note Frame -- (see Page 4)		Appelez-nous	-
