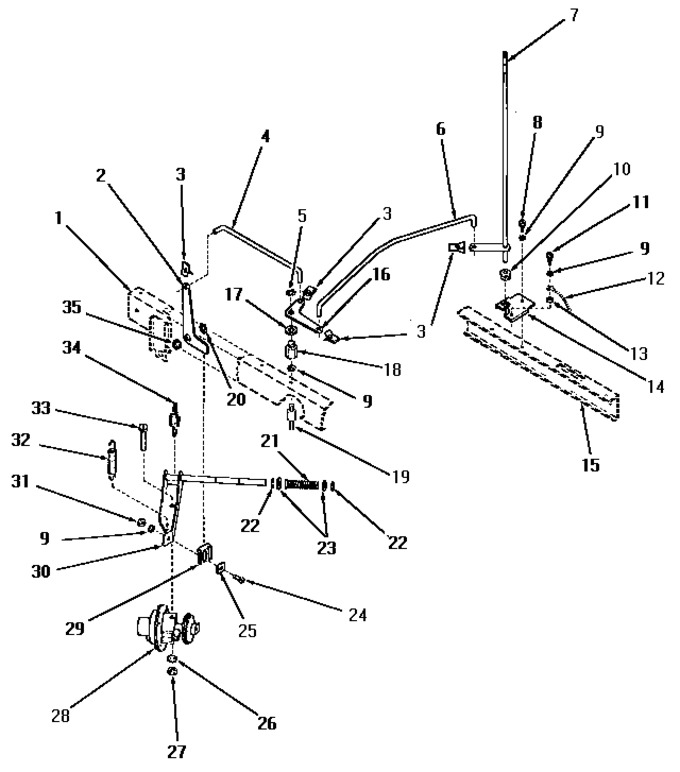

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Cross Channel, Front -- (see Page 4)		Appelez-nous	-
2	10056		Pivot Arm, Lower		Appelez-nous	-
3	Y10220		Clip		Appelez-nous	-
4	10062		Control Rod, Center		Appelez-nous	-
5	10212		Retainer Ring		Appelez-nous	-
6	10061		Control Rod, Center				$ 22.22
7	A10210		Control Rod, Upper		Appelez-nous	-
8	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
9	Y3815		Lockwasher		Appelez-nous	-
10	10019		Grommet Xreplace		Appelez-nous	-
11	51924		Screw,10-24 X 1/2 Hex		Appelez-nous	-
12	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
13	Q6623		Washer		Appelez-nous	-
14	Y10018		Anchor Plate		Appelez-nous	-
15	Y00000000		See Note Cross Channel, Rear -- (see Page 4)		Appelez-nous	-
16	10057		Pivot Arm, Upper		Appelez-nous	-
17	10223		Nylon Washer			Immediately	$ 56.53
18	Y00000000		See Note Pivot Nut -- (see Page 6)		Appelez-nous	-
19	Y00000000		See Note Mounting Stud -- (see Page 6)		Appelez-nous	-
20	Y10213		Retainer Ring		Appelez-nous	-
21	10048		Spring Xreplace				$ 150.92
22	10047		Ring,retaining Xreplace		Appelez-nous	-
23	20286		Washer,15/32idx15/16od		Appelez-nous	-
24	Y3814		Round Head Screw		Appelez-nous	-
25	10053		Plate Xreplace		Appelez-nous	-
26	Y2834		Lockwasher		Appelez-nous	-
27	COMM PART		Nut,hex 5/16-18   (Replaces: 70142)		Appelez-nous	-
28	A10054		Wash Pump Assembly		Appelez-nous	-
29	10052		Plate,nylon Xreplace				$ 7.32
30	A10044		Pump Mounting Bracket		Appelez-nous	-
31	3673		Sub 4509		Appelez-nous	-
32	10051		Spring				$ 50.15
33	2463		Fillister Head Screw		Appelez-nous	-
34	Y10050		Spring Xreplace		Appelez-nous	-
35	10055		Spring				$ 7.03
