SELECT A DIAGRAM

01 - A10040 Transmission Assy


02 - A10054 Wash Pump Assy


03 - Agitator And Transmission Assy


04 - Cabinet


05 - Cabinet Top And Loading Doors


06 - Chassis


07 - Control Housing And Controls


08 - Motor And Spin Pump Assy


09 - Power Cord, Inlet Hose And Clothes Tongs


10 - Spin Tub And Motor


11 - Wash Motor


12 - Wash Pump, Control Rods And Bracket


13 - Wash Tub


14 - Wire Harness, Wire And Terminals

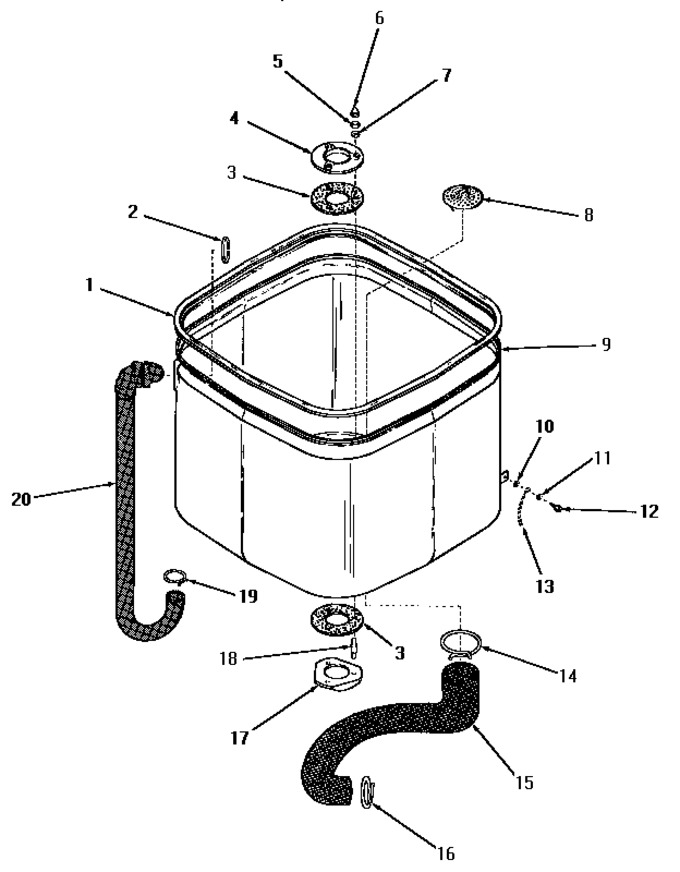

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10073		Gasket Xreplace		Appelez-nous	-
2	10178		Ring,retaining Xreplace		Appelez-nous	-
3	10066		Gasket Xreplace			Immediately	$ 38.80
4	10071		Collar Xreplace				$ 76.34
5	10386		Washer Xreplace			Immediately	$ 15.35
6	10072		Nut,cap Xreplace		Appelez-nous	-
7	10203		Lockwasher,sealing		Appelez-nous	-
8	A10390		Drain Screen		Appelez-nous	-
9	10067		Wash Tub		Appelez-nous	-
10	Q6623		Washer		Appelez-nous	-
11	Y3815		Lockwasher		Appelez-nous	-
12	51924		Screw,10-24 X 1/2 Hex		Appelez-nous	-
13	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
14	10173		Hose Clamp		Appelez-nous	-
15	10172		Hose		Appelez-nous	-
16	10174		Hose Clamp				$ 235.70
17	10064		Tub Support Plate		Appelez-nous	-
18	10065		Stud,mounting Xreplace		Appelez-nous	-
19	21372		Hose Clamp		Appelez-nous	-
20	A10175		Recirculating Hose		Appelez-nous	-
