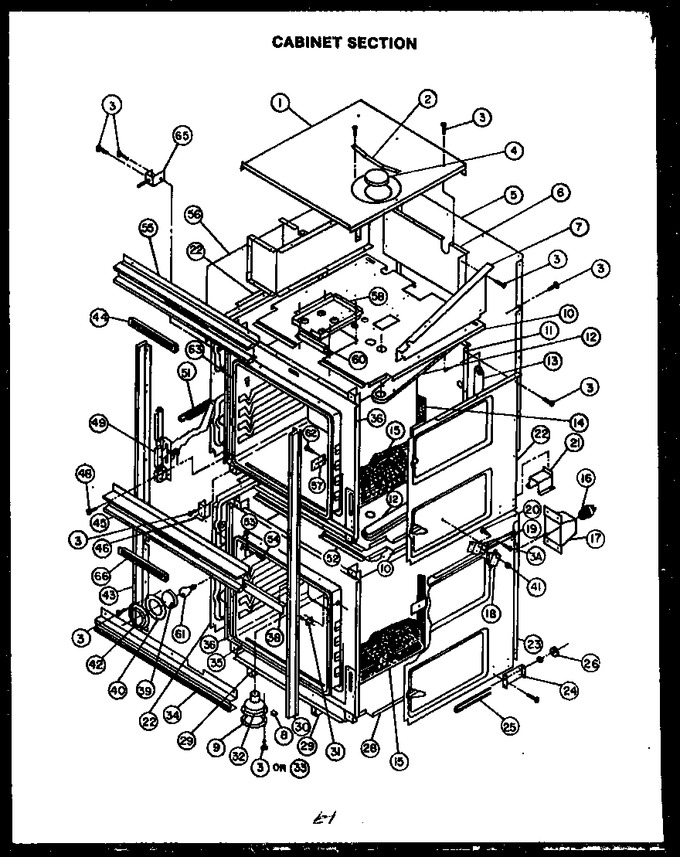

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	52806		Cabinet Top		Appelez-nous	-
2	0040911		Flue Collar Cap Brkt Pyro W/o		Appelez-nous	-
3	41837		Screw, Sw. Mtg. Bkt.		Appelez-nous	-
3	Y41808		Screw		Appelez-nous	-
4	0040542		Cover, Flue Collar		Appelez-nous	-
5	60842		Upper Cabinet Back		Appelez-nous	-
6	Y52815		Control Compartment Back		Appelez-nous	-
7	Y52802		Control Compartment Side, Rt.		Appelez-nous	-
8	51751		Clip		Appelez-nous	-
9	0059223		Gasket, Smoke Elminator		Appelez-nous	-
10	0046325		Top, Lower Oven		Appelez-nous	-
10	52801		Upper Oven Top		Appelez-nous	-
11	54079		Assy,control & Igniter		Appelez-nous	-
12	Y0040581		Lower Oven Flue Box W/a Pyro		Appelez-nous	-
13	Y0042406		Tube, Lower Oven Vent-pyro W/o		Appelez-nous	-
14	Y0041113		Sub 41966, Insulation		Appelez-nous	-
15	Y0041976		Sub 41966, Insulation		Appelez-nous	-
16	73028		Fastener		Appelez-nous	-
17	60778		Lamp Cup		Appelez-nous	-
18	Y60257		Switch, Sec. Interlock		Appelez-nous	-
19	53253		Manual,parts		Appelez-nous	-
20	92042		Screw, Sw. Mtg.		Appelez-nous	-
21	0041021		Support, Rear Oven-pyro W/o		Appelez-nous	-
22	60774		Assy Bulk Head		Appelez-nous	-
23	59743		Install Instructions		Appelez-nous	-
24	Y40990		Door Spring Rod Bracket		Appelez-nous	-
25	52964		Door Spring Adjustment Rod		Appelez-nous	-
26	M0282005		Sub 97884 Nut   (Replaces: Y0041853)				$ 7.07
27	Y00000000		See Note Lower Oven Air Channel -- (not Used)		Appelez-nous	-
28	Y0040752		Bottom, Lwr Oven		Appelez-nous	-
29	Y0041019		Runner, Base-pyro W/o		Appelez-nous	-
30	Y0300060		Trim, Side R.h.		Appelez-nous	-
31	Y63351		Capillary Hole Cover		Appelez-nous	-
32	Y63337		Smoke Eliminator		Appelez-nous	-
33	0041773		Screw 6 32x1 Slotted Rn Brass		Appelez-nous	-
34	Y0300059		Bottom Trim		Appelez-nous	-
35	59210CG		Kit, Oven Liner		Appelez-nous	-
36	40150CG		Front Frame		Appelez-nous	-
37	Y00000000		See Note Lower Cabinet Side, Rt -- (not Used)		Appelez-nous	-
38	Y40850CG		Reflector Shield		Appelez-nous	-
39	0052276		Lens, Oven Light		Appelez-nous	-
40	Y0041987		Gasket,oven Light		Appelez-nous	-
41	M0282005		Nut K   (Replaces: Y0097887)				$ 7.07
42	0040995		Lens Retainer Stainless Steel		Appelez-nous	-
43	0300061		Trim, Side L.h.		Appelez-nous	-
44	Y0042018		Latch Handle Guide Pyro W.o.		Appelez-nous	-
45	Y0300058		Center Trim		Appelez-nous	-
46	0041020		Support, Front Oven-pyro W/o		Appelez-nous	-
47	Y00000000		See Note Panel, Mon. Sw. Cover -- (rt) (not Used)		Appelez-nous	-
48	WP90767		Screw, Sm   (Replaces: Y0041816)			Immediately	$ 7.04
49	Y0052095		Hinge Assy		Appelez-nous	-
52	Y0040741		Upper Oven Bottom Pyro W/o		Appelez-nous	-
53	Y0040848		Probe Recept. Cover Stainless		Appelez-nous	-
54	0041815		Shoulder Screw		Appelez-nous	-
55	Y0300056		Trim, Control Panel Bottom		Appelez-nous	-
56	52697		Motor		Appelez-nous	-
57	60952		Shield,heat Duct		Appelez-nous	-
58	Y0040903		Latch Mtg. Brkt Pyro W/o		Appelez-nous	-
59	Y00000000		See Note Bracket, Intrusion. -- (lt. Or Rt.) (not Used)		Appelez-nous	-
60	0040792		Terminal Shield W/a		Appelez-nous	-
61	Y0042175		Bulb, Light		Appelez-nous	-
62	76029		Screw		Appelez-nous	-
63	59207CG		Oven Shell Wall Oven		Appelez-nous	-
65	Y63420		Bracket Pin Assy., Upper Oven		Appelez-nous	-
66	Y0042015		Latch Handle Guide Pyro		Appelez-nous	-
NI	0052818		Air Baffle		Appelez-nous	-
NI	67053		Clip, Thermostat Bulb				$ 71.06
NI	79498		Receptacle, Meat Probe		Appelez-nous	-
NI	Y0042740		Spring, Oven Door-pyro W/o		Appelez-nous	-
NI	0040405		Chip Cover Pyro Wo		Appelez-nous	-
NI	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
NI	52242		Lower Oven Probe		Appelez-nous	-
NI	52241		Upper Oven Probe		Appelez-nous	-
NI	0054773		Thermostat		Appelez-nous	-
NI	52094		Insulation		Appelez-nous	-
NI	63477		Chip Cover, Upper Oven		Appelez-nous	-
NI	Y64106		Meat Probe		Appelez-nous	-
NI	0040398		Chip Cover Pyro W.o.		Appelez-nous	-
NI	Y0040925		Capillary Hole Cover Plate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
