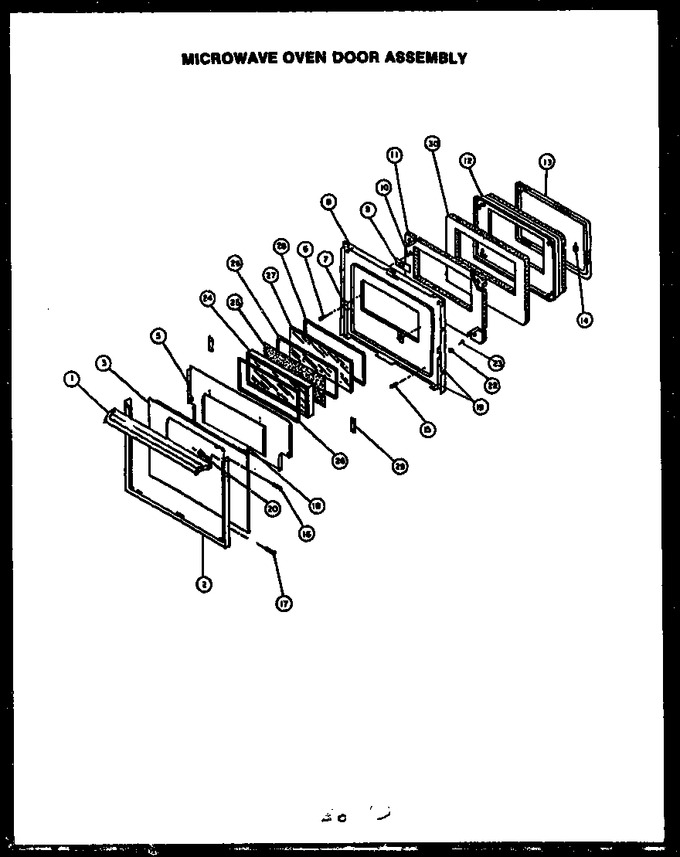

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0300051		Oven Door Handle		Appelez-nous	-
2	300049W		Frame, Oven Door		Appelez-nous	-
3	0300062		Glass, Oven Door W/w		Appelez-nous	-
5	301830W		Inner Baffle, White		Appelez-nous	-
6	0041798		Screw 8-18x.875 B Hx Hd		Appelez-nous	-
7	Y52641		Window Mounting Bracket		Appelez-nous	-
8	52449CG		Sub 303069e, Door Liner, Charc		Appelez-nous	-
9	Y0052039		Latch Plate		Appelez-nous	-
10	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
11	52562		Idler Lever		Appelez-nous	-
12	53243CG		Backer, Oven Door		Appelez-nous	-
13	Y51647		Tape,2 In Wide 3m 234		Appelez-nous	-
14	Y68429		Speed Clip		Appelez-nous	-
15	0041798		Screw 8-18x.875 B Hx Hd		Appelez-nous	-
16	0041840		Screw 8-32x.375 Dk Gl Dr Hdl		Appelez-nous	-
17	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
18	Y0041899		Glass Clip		Appelez-nous	-
19	0042014		Cork Bumper		Appelez-nous	-
20	WP488130		Nut K   (Replaces: Y0097886)				$ 6.27
22	73179		Switch		Appelez-nous	-
23	Y0091609		Screw		Appelez-nous	-
24	0053518		Window Assy		Appelez-nous	-
25	Y64212		Screen, Window		Appelez-nous	-
26	Y63866		Gasket, Window Screen		Appelez-nous	-
27	Y64210		Glass, Window		Appelez-nous	-
28	DE81-10110A		Gasket, Window Assembly   (Replaces: 66171)				$ 118.85
29	Y0052629		Retainer, Door Glass		Appelez-nous	-
30	54415P		Idler Pulley   (Replaces: 52561)		Appelez-nous	-
NI	WP233520		Washer, 501 Id X3/4 Odx   (Replaces: 52549)			Immediately	$ 7.16
NI	Y71914		Screw, S.m.		Appelez-nous	-
NI	Y0301828		Spacer Bracket, Air Baffle		Appelez-nous	-
NI	301755W		Vent Deflector, White		Appelez-nous	-
NI	Y0052628		Frame, Window Spacer		Appelez-nous	-
