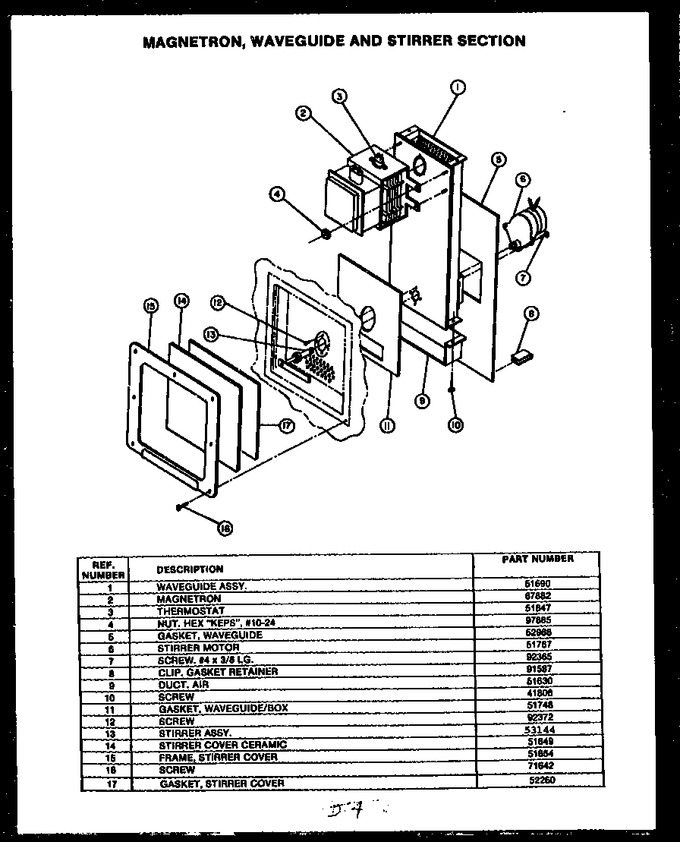

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 51690 | Waveguide Assy. |
|
- | |||||
| 2 | 67882 | Magnetron |
|
Immediately | $ 11.07 | ||||
| 3 | 0051847 | Hi Limit, Magnetron |
|
- | |||||
| 4 | M0282009 | Nut (Replaces: Y0097885) |
|
$ 12.06 | |||||
| 5 | 0052968 | Sub 51747, Gasket, Waveguide |
|
- | |||||
| 6 | 0051767 | Motor, Stirrer |
|
- | |||||
| 7 | Y0092365 | Screw 4-40x1 |
|
- | |||||
| 8 | Y0091587 | Cable, Clip Esm |
|
- | |||||
| 9 | Y0051630 | Duct, Waveguide |
|
- | |||||
| 10 | Y41808 | Screw |
|
- | |||||
| 11 | 51748 | Gasket, Waveguide/box |
|
- | |||||
| 12 | 0092372 | Screw 6x1/4 Phil Pan Hd |
|
- | |||||
| 13 | 0053144 | Stirrer Assy |
|
- | |||||
| 14 | 51649 | Stirrer Cover, Ceramic |
|
- | |||||
| 15 | 51654 | Frame Stirrer Cover |
|
- | |||||
| 16 | Y71642 | Screw |
|
- | |||||
| 17 | 0052260 | Gasket, Stirrer Cover |
|
- |
