SELECT A DIAGRAM

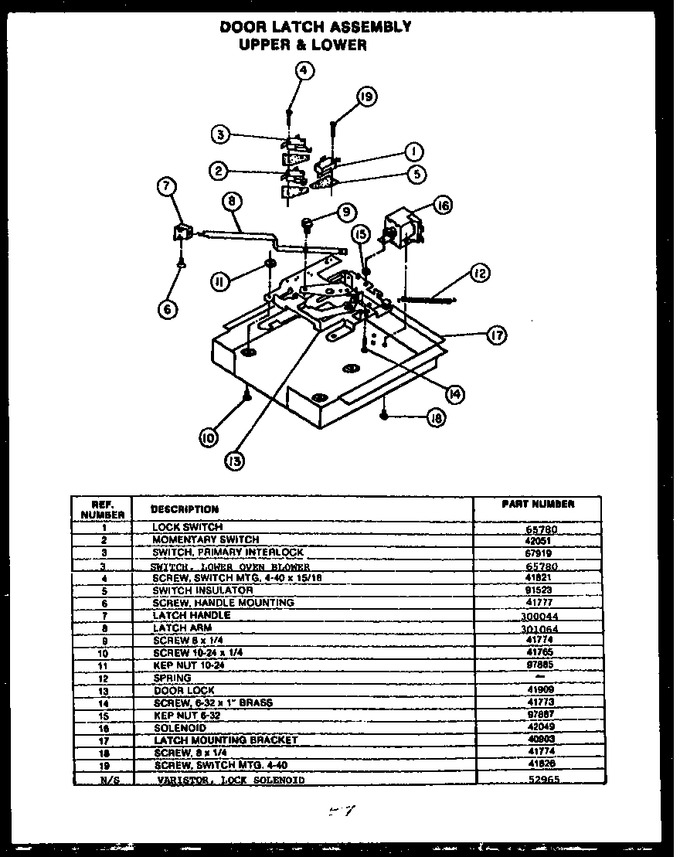

01 - Cabinet Section


02 - Door Latch Assy Upper & Lower


03 - Lower Door Ass.


04 - Lower Oven Accesories


05 - Magnetron


06 - Microwave Oven Door Assy


07 - Page 2


08 - Power Supply


09 - Upper Oven Acessories


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65780		Switch, Oven Door Latch		Appelez-nous	-
2	0042051		Main Contact Switch		Appelez-nous	-
3	67919		Switch, Primary Interlock		Appelez-nous	-
3	65780		Switch, Oven Door Latch		Appelez-nous	-
4	Y0041821		Screw 4-40x15/16``		Appelez-nous	-
5	Y0091523		Insulation, Esm		Appelez-nous	-
6	Y0041777		Screw 6-32x5/8 Knob Door Lk		Appelez-nous	-
7	Y0300044		Knob, Door Latch Lt Gray		Appelez-nous	-
8	301064		Bracket , Controls Assy.		Appelez-nous	-
9	0041774		Screw 10-32 X.250 Hex		Appelez-nous	-
10	WP4159193		Screw, No.10-24x1/4 (pan Ph Hd)   (Replaces: Y0041765)				$ 4.29
11	M0282009		Nut   (Replaces: Y0097885)				$ 12.06
12	Y00000000		See Note Spring		Appelez-nous	-
13	Y0041909		Door Latch Assy Wo		Appelez-nous	-
14	0041773		Screw 6 32x1 Slotted Rn Brass		Appelez-nous	-
15	M0282005		Nut K   (Replaces: Y0097887)				$ 7.07
16	Y0042049		Solenoid Eaton Pyro Th Wo		Appelez-nous	-
17	Y0040903		Latch Mtg. Brkt Pyro W/o		Appelez-nous	-
18	0041774		Screw 10-32 X.250 Hex		Appelez-nous	-
19	Y0041826		Screw 4 X 40x.500 Dyro T (blk)		Appelez-nous	-
NI	52965		Code G		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
