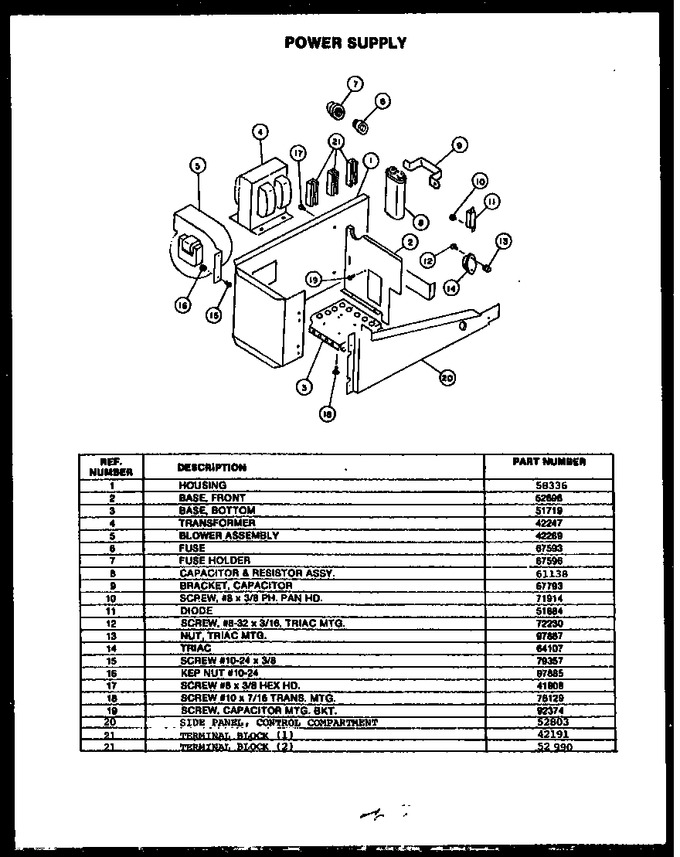

08 - Power Supply


09 - Upper Oven Acessories


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y58336		Housing		Appelez-nous	-
2	52698		Exhaust Tube		Appelez-nous	-
3	51719		Base, Bottom		Appelez-nous	-
4	Y0042247		Sub 312899, Kit Transformer		Appelez-nous	-
5	Y0042289		Blower Assy Microwaves		Appelez-nous	-
6	67593		Fuse		Appelez-nous	-
7	67596		Fuse Holder		Appelez-nous	-
8	Y61138		Capacitor & Resistor Assy.		Appelez-nous	-
9	67793		Bracket, Capacitor		Appelez-nous	-
10	Y71914		Screw, S.m.		Appelez-nous	-
11	Y0051884		Sub 89945, Diode		Appelez-nous	-
12	72230		Screw		Appelez-nous	-
13	M0282005		Nut K   (Replaces: Y0097887)				$ 7.07
14	Y64107		Triac		Appelez-nous	-
15	79357		Screw		Appelez-nous	-
16	M0282009		Nut   (Replaces: Y0097885)				$ 12.06
17	Y41808		Screw		Appelez-nous	-
18	DE81-07625A		Screw   (Replaces: 76129)				$ 43.88
19	Y0092374		Metal Screw 6x3/8 Phil Pan Hd		Appelez-nous	-
20	Y52803		Side Panel, Control Compartmen		Appelez-nous	-
21	52990		Terminal Block		Appelez-nous	-
21	Y0042191		Term Blk Eo&go 1m-2.5m-5m-10m		Appelez-nous	-
