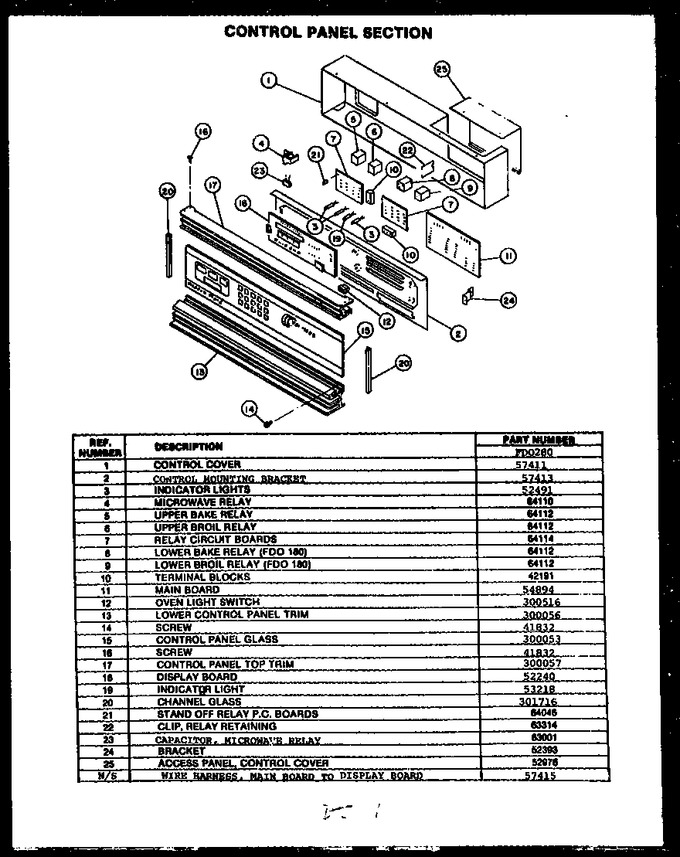

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	57411		Control Cover		Appelez-nous	-
2	Y57413		Control Mounting Bracket		Appelez-nous	-
3	Y0052491		Indicator Light		Appelez-nous	-
4	64110		Microwave Relay		Appelez-nous	-
5	Y64112		Lower Broil Relay		Appelez-nous	-
6	Y64112		Lower Broil Relay		Appelez-nous	-
7	Y64114		Relay Circuit Boards		Appelez-nous	-
8	Y64112		Lower Broil Relay		Appelez-nous	-
9	Y64112		Lower Broil Relay		Appelez-nous	-
10	Y0042191		Term Blk Eo&go 1m-2.5m-5m-10m		Appelez-nous	-
11	0054894		Main Control		Appelez-nous	-
12	Y0300516		Switch, Rocker		Appelez-nous	-
13	Y0300056		Trim, Control Panel Bottom		Appelez-nous	-
14	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
15	0300053		Glass, Electronic Touch		Appelez-nous	-
16	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
17	Y0300057		Trim, Control Panel Top		Appelez-nous	-
18	0052240		Control, Display Oven		Appelez-nous	-
19	Y53218		Indicator Light		Appelez-nous	-
20	Y0301716		Channel Glass		Appelez-nous	-
21	100111296		Stand Off Relay P.c. Boards   (Replaces: 64046)			Immediately	$ 424.44
22	Y63314		Clip, Relay Retaining		Appelez-nous	-
23	63001		Capacitor, Microwave Relay				$ 159.66
24	LS3-135		Thermostat   (Replaces: 52393)				$ 21.92
25	52976		Access Panel, Control Cover		Appelez-nous	-
NI	0057415		Wire Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
